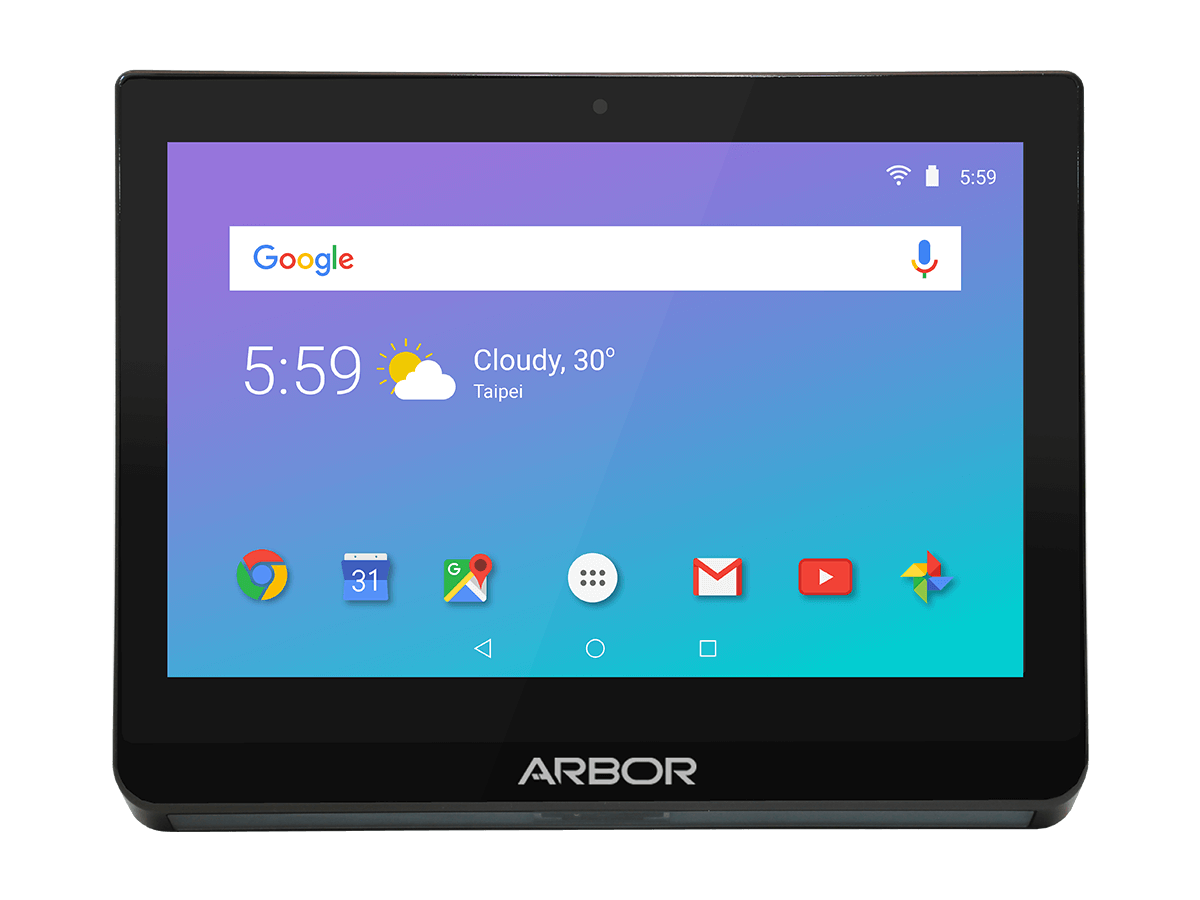

PC1017
10.1” Price checking terminal
PC1017
10.1” Price checking terminal
主要特點
Coming Soon
- Quad-Core ARM Cortex-A35 CPU 1.5G Hz, Android-based
- Price verification/updates in retail application
- 10.1” LCD display
- 10-point Projected Capacitive Multi-Touch
- H.265/HEVC Video Decode
- PoE connectivity (PD)
- Operating temperature: 0~40ºC
規格表
System
| CPU | ARM Quad-Core Cortex-A35 1.5GHz (SoC) |
|---|---|
| GPU | MaliG31GPU |
| Memory | 2GB DDR4 memory soldered on board (Max. up to 4GB DDR) |
| Storage | 16GB eMMC Flash soldered on board |
Peripherals and Devices
| Camera | 2MP front-facing camera (optional) |
|---|---|
| WLAN & Bluetooth | 1 x WLAN 802.11 b/g/n & Bluetooth 4.0 + BLE |
| RFID & NFC | 1 x 13.56MHz RFID & NFC reader with ISO 14443A/14443B/15693 support (optional) |
| Barcode Scanner | 1D/2D barcode scanner (optional) |
I/O Interface
| Audio | 1 x 3W stereo speaker |
|---|---|
| LAN | 1 x RJ-45 10/100M with PoE PD support |
| USB Port | 2 x USB 2.0 Type-A Port |
Button & Indicator
| Button | 1 x Power on/off button |
|---|---|
| LED | RJ-45 connector LED (Green: DC power, Orange: PoE) |
LCD Display
| Size/Type | 10.1” TFT, MIPI type |
|---|---|
| Max. Resolution | 1280 x 800 (WXGA) |
| Luminance | 250 cd/m² (typ.) |
| Contrast Ratio | 800:1 (typ.) |
| Backlight Type | LED |
| View Angle (U/D/R/L) | 85°/85°/85°/85° (typ.) |
Touch Screen
| Type | 10-point Projected Capacitive Multi-Touch |
|---|
Power Requirement
| Power Input | PoE input or DC 12V/2.5A |
|---|---|
| Adapter Input | 100 ~ 240 VAC (full range) |
| Adapter Output | DC 12V, 2.5A |
OS Support
| Android™ 8.1 |
|---|
Ordering Information
| PC1017 | 10.1" terminal with projected capacitive touchscreen |
|---|
Mechanical & Environmental
| Operating Temp. | 0 ~ 40°C (32 ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F~140°F) |
| Operating Humidity | 10 ~ 80 % @ 45ºC (non-condensing) |
| Dimensions (W x H x D) | 248.3 x 194.4 x 35.2 mm (9.76” x 7.65” x 1.38”) |
| Net Weight | 662g (1.46lb) |
| Vibration | 1 Grms/ 5 ~ 500Hz/ random operation |
| Shock | 10G/ peak (11ms) |
| Mounting | VESA-75 compatible |
| IP Rating | Front panel design with IP54 |
| Operational Altitude | Below 2000m |
| Regulatory | CE, FCC Part 15 Subpart C |
配件
Optional Accessories
-
Power Adapter
Universal power adapter, 12V/2.5A
Optional Configuration (CTOS* Kit) (Not Sold Separately)
-
RFID & NFC
RFID & NFC module kit -
Barcode Scanner
1D/2D barcode scanner -
Camera
2MP front-facing camera
