IEC-3366
Digital Signage Player with Intel® 11th Core / Celeron® Processor
IEC-3366
Digital Signage Player with Intel® 11th Core / Celeron® Processor
Features
- Intel® 11th Core / Celeron® Processor (Tiger lake-UP3)
- Dual DDR4 SODIMM sockets
- Dual HDMI output supported
- Dual GbE RJ45 ports
- 1 x M.2 2280 M-Key slot, 1 x M.2 2230 E-Key slot
- 1 x M.2 3052 B-Key slot
規格表
System
| CPU | Soldered onboard Intel® 11th Generation Core i7/i5/i3 or Celeron® processor (Tiger Lake-UP3) |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB |
| LAN Chipset | 2 x Intel GbE RJ45 |
| Graphics | Integrated Intel® Iris® Xe / UHD Graphic (depends on CPU SKU) |
I/O
| Serial Port | 1 x DB-9 male connector for RS-232 (option 1) |
|---|---|
| USB Port | 2 x USB 3.0 port2 (option 1) 6 x USB 3.0 ports (option 2) |
| LAN | 2 x RJ-45 ports for GbE |
| Video Port | 2 x HDMI max resolution up to 4096*2160@30Hz |
| Audio | 1 x Phone jack connector for Line-Out + MIC |
| Expansion Bus | 1 x M.2 2230 E-Key slot 1 x M.2 3052 B-Key slot |
Environmental
| Operating Temp. | 0 ~ 40°C ( 32 ~ 104°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) |
| Vibration | 1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operatio |
| Shock | Operating 10G, Non-operating 20G |
OS Support
| System | Windows 10 / Linux Ubuntu |
|---|
Storage
| Type | 1 x M.2 2280 M-Key slot for SATA SSD |
|---|
Qualification
| Certification | CE, FCC |
|---|
Power Requirement
| Power Input | DC 12V input |
|---|---|
| Power Consumption | 1.28A @12V (typical w/ i7-1165G7) |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Weight (approx.) | 950g |
| Dimensions (W x D x H) | 198.5 x 124 x 38.7 mm |
Ordering Information
| IEC-3366-1135G7-6U | Intel® Core i5-1135G7 Processor, 2 HDMI, 2 GbE, 6 USB, 8GB SDRAM, 256GB M.2 SSD |
|---|---|
| IEC-3366-1115G4 | Barebone system with Intel® Core i3-1115G4 Processor |
| IEC-3366-6305E | Barebone system with Intel® Celeron 6305E Processor |
OEM Request

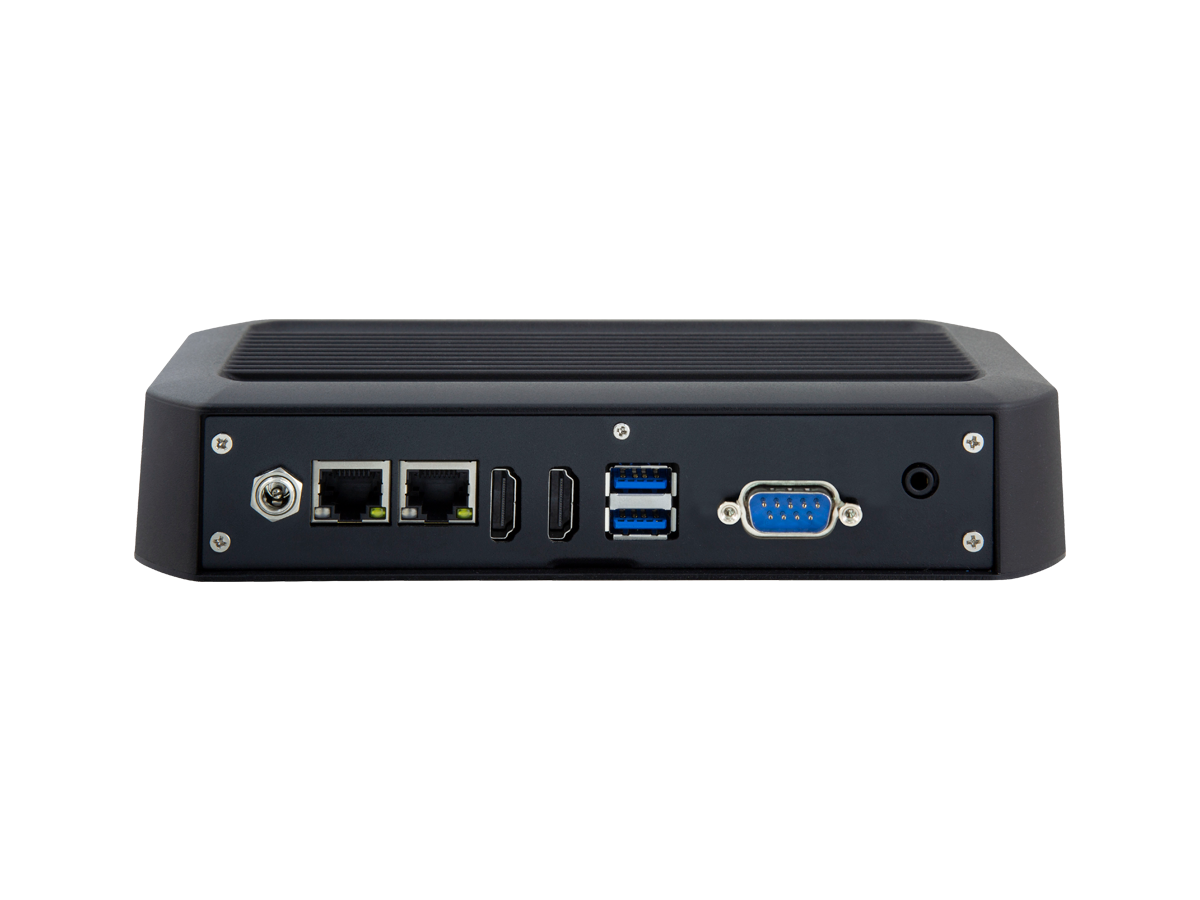

| IEC-3366-1135G7-2U1S | Intel® Core i5-1135G7 Processor, 2 HDMI, 2 GbE, 2 USB, 1 RS-232 |
|---|---|
| IEC-3366-1165G7-6U | Intel® Core i7-1165G7 Processor, 2 HDMI, 2 GbE, 6 USB |
| IEC-3366-1115G4-6U | Intel® Core i3-1115G4 Processor, 2 HDMI, 2 GbE, 6 USB |
| IEC-3366-6305E-6U | Intel® Celeron 6305E Processor, 2 HDMI, 2 GbE, 6 USB |
尺寸圖
配件
Standard Accessories
-
Power Adaptor
12VDC, 5A, 60W, 2.5φ JACK, AC/DC Adaptor with power cord
Optional Configuration (CTOS* Kit)
-
256GB/ 512GB/ 1T/ SSD
256GB/ 512GB/ 1T M.2 SSD -
DDR4 4GB/ 8GB/ 16GB
DDR4-2666 4GB/ 8GB/ 16GB SO-DIMM
