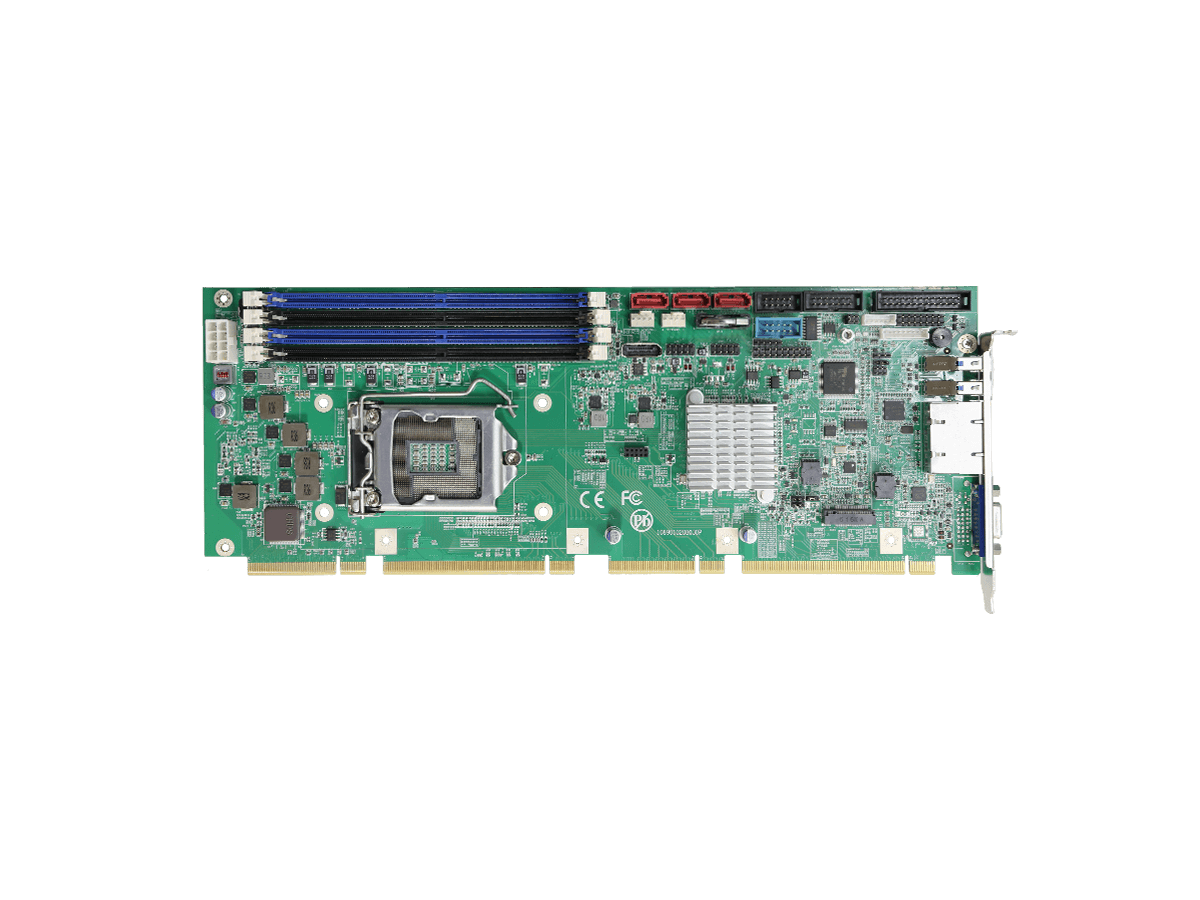

HiCORE-i89Q1/i89Q2
Intel® LGA1151 6th Gen. Core™ Full-size SBC
HiCORE-i89Q1/i89Q2
Intel® LGA1151 6th Gen. Core™ Full-size SBC
Features
- PICMG 1.3 Specification
- Support Intel® LGA1151 6th Gen. i3/i5/i7 Core processors
- Integrated Dual Gigabit Ethernets
- DDR4 Non-ECC Long-DIMM supported
- SATA RAID 0, 1, 5, 10 supported
- Support Intel® M.2 SSD
- Support Intel® vPro & AMT (for Core i7 & i5 only)
- Support Intel® Solid State Drive (SSD) Embedded "E SKU's
規格表
System
| CPU | Support 6th Generation Intel® Core™ i7/i5/i3 processors in LGA1151 socket |
|---|---|
| Chipset | Intel® PCH Q170 |
| Memory | 4 x 288-pin DDR4 Long-DIMM sockets, supporting 2133/1866MHz SDRAM up to 64GB |
| BIOS | AMI UEFI BIOS |
| Storage | Supports TPM 1.2 & 2.0 daughterboard via LPC connector (optional) |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Super I/O | Fintek F81768 |
|---|---|
| USB Port | 4 x USB 2.0 ports to Golden finger 4 x USB 2.0 ports w/ pin-header 2 x USB 3.0/2.0 ports on bracket |
| KB/MS | 6-pin wafer connector for keyboard and mouse via Y-cable |
| Serial Port | 1 x RS-232 1 x RS-232/422/485 selectable |
| Digital I/O | 8-bit programmable digital input/output |
| Parallel Port | SPP/EPP/ECP mode selectable |
| Expansion | 1 x PCIe x4 Lanes or 4 x PCIe x1 Lanes 1 x PCIe x16 lanes Gen. 3 4 x PCI masters LPC interface |
| Storage | Six Serial ATA ports with 600MB/s HDD transfer rate - 3 ports on board - 1 port to M.2 socket M-Key, supporting SATA/PCIe x4 depending on SSD module - 2 port to Golden finger SATA RAID 0, 1, 5, 10 supported |
| Ethernet Chipset | 1 x Intel® i219LM PCIe GbE PHY 1 x Intel® i210AT PCIe GbE controller |
| Audio | One 1x9-pin wafer connector for HD Audio daughterboard |
Mechanical & Environmental
| Power Requirement | DC 12V, 5V |
|---|---|
| Power Consumption | 2.66A@12V |
| Operating Temp. | 0 ~ 60°C (32 ~ 122°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) |
| Dimension (L x W) | 338 x 126 mm (13.3" x 4.96") |
Display
| Graphics Chipset | Integrated Intel® HD Graphics (depends on CPU) |
|---|---|
| Graphics Interface | 1 x DVI-I port on board (HiCORE-i89Q1) or 1 x VGA port on board (HiCORE-i89Q2) 1 x DisplayPort |
OS support
| Windows 10 64-bit Linux: Ubuntu |
Ordering Information
| HiCORE-i89Q1-D-x4 | Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 1 x PCIe x4 w/ DVI-I |
|---|---|
| HiCORE-i89Q1-D-x1 | Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 4 x PCIe x1 w/ DVI-I |
| HiCORE-i89Q2-V-x4 | Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 1 x PCIe x4 w/ VGA |
| HiCORE-i89Q2-V-x1 | Socket LGA1151/PCH Q170 for 6th Generation Intel® Core™ i7/ i5/ i3 processors PICMG 1.3 full size SBC with BIOS for 4 x PCIe x1 w/ VGA |
配件
Optional Accessories
| PBPE-07SA | 7-slot PICMG 1.3 backplane |
|---|---|
| PBPE-13SA | 13-slot PICMG 1.3 backplane |
| PBPE-10SA (OEM request) | 10-slot PICMG 1.3 backplane |
| HS-89Q1-C1 | Copper CPU cooler for Intel® Core™ processor series |
| DP Cable | Male DP port to female DP port cable |
| FCDB-1111 | Realtek ALC888 HD Audio daughterboard |
| SCDB-3291 | TPM 1.2 Daughter board with Infineon OPTIGA TPM SLB9660 |
| SCDB-3292 | TPM 2.0 Daughter board with Infineon OPTIGA TPM SLB9665 |
