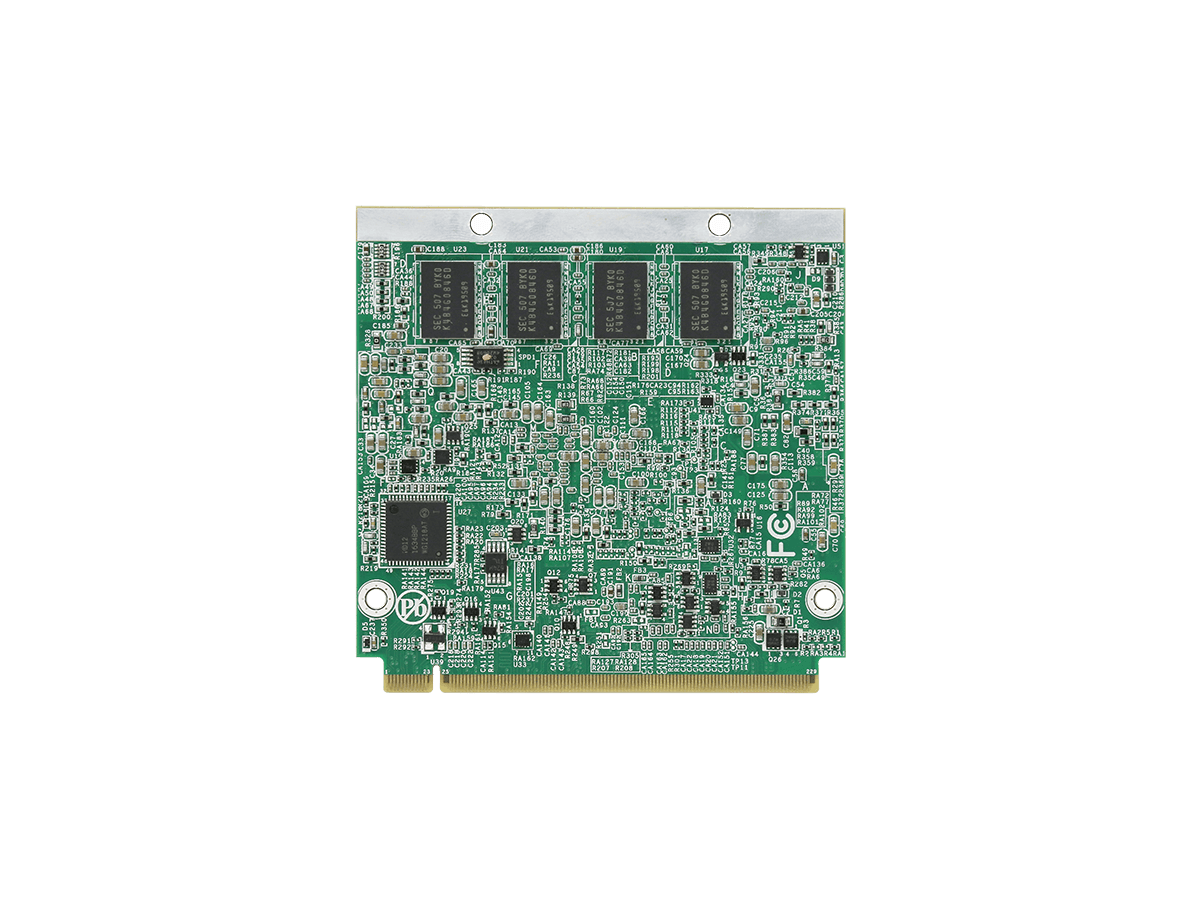

EmQ-i2401
Intel® Pentium N4200/Celeron N3350/Atom x7-E3950/x5-E3940/E3930 Processor Qseven R2.0 CPU Module
EmQ-i2401
Intel® Pentium N4200/Celeron N3350/Atom x7-E3950/x5-E3940/E3930 Processor Qseven R2.0 CPU Module
Features
- Soldered onboard Intel Apollo Lake SoC Processor
- Integrated Gigabit Ethernet
- Dual Channel 24-bit LVDS and 1 x DP port
規格表
System
| CPU | Soldered onboard Intel® Pentium® N4200 2.5GHz/Celeron® N3350 2.4GHz/ Atom™ x7-E3950 1.6GHz/ x5-E3940 1.6GHz/x5-E3930 1.3GHz processor.5GHz processor |
|---|---|
| Memory | Soldered onboard 4GB DDR3L SDRAM, upgradeable to 8GB |
| BIOS | AMI UEFI BIOS (Legacy) |
I/O Interface
| USB Port | 4 x USB 2.0 ports 2 x USB 3.0 SuperSpeed ports |
|---|---|
| Expansion Bus | 4 x PCIex1 lanes, I2C Interface, SDIO |
| Storage | 2 x Serial ATA ports Soldered onboard eMMC 5.0 up to 16GB/32GB (OEM Request) |
| Ethernet Chipset | 1 x Intel® Ethernet controller i21x series |
| Audio | HD Audio link |
Mechanical & Environmental
| Power Requirement | DC 5V, 5VSB |
|---|---|
| Power Consumption | 2A@5V with N4200 (Typical with PBQ-900R) |
| Operating Temp. | --20 ~ 85°C (-4 ~ 185oF) -20 ~ 70°C for EmQ-i2401D series -40 ~ 85°C for EmQ-i2401-WT series |
| Operating Humidity | 10 ~ 95% @ 85°C (non-condensing) |
| Dimension (L x W) | 70 x 70 mm (2.76” x 2.76”) |
Display
| Graphics Chipset | Integrated in Intel® Gen9 graphic |
|---|---|
| Graphics Interface | Dual Channel 24-bit LVDS, with resolution up to 1920x1200 1 x DP port |
OS support
| Windows 10 64-bit Linux: Ubuntu |
Ordering Information
| EmQ-i2401-N4200 | Intel® Pentium® N4200 Qseven R2.0 CPU module w/ 4G memory soldered on module, -20~85°C |
|---|---|
| EmQ-i2401-N3350 | Intel® Celeron® N3350 Qseven R2.0 CPU module w/ 4G memory soldered on module, -20~85°C |
| EmQ-i2401-WT-E3950 | Intel® Atom® x7-E3950 Qseven R2.0 CPU module w/ 4G memory soldered on module, -40~85°C |
| EmQ-i2401-WT-E3940 | Intel® Atom® x5-E3940 Qseven R2.0 CPU module w/ 4G memory soldered on module, -40~85°C |
| EmQ-i2401-WT-E3930 | Intel® Atom® x5-E3930 Qseven R2.0 CPU module w/ 4G memory soldered on module, -40~85°C |
尺寸圖
配件
Optional Accessories
| PBQ-900L | Qseven R2.0 w/ EPIC form factor carrier board |
|---|---|
| HS-2401-F1 | Heat Spreader For N-Series |
| HS-2401-F2 | Heat Spreader For E-Series |
| CBK-06-900L-00 | Cable kit: 2 x COM cables 1 x USB cable 1 x SATA cable 1 x SATA Power cable 1 x Audio cable |
