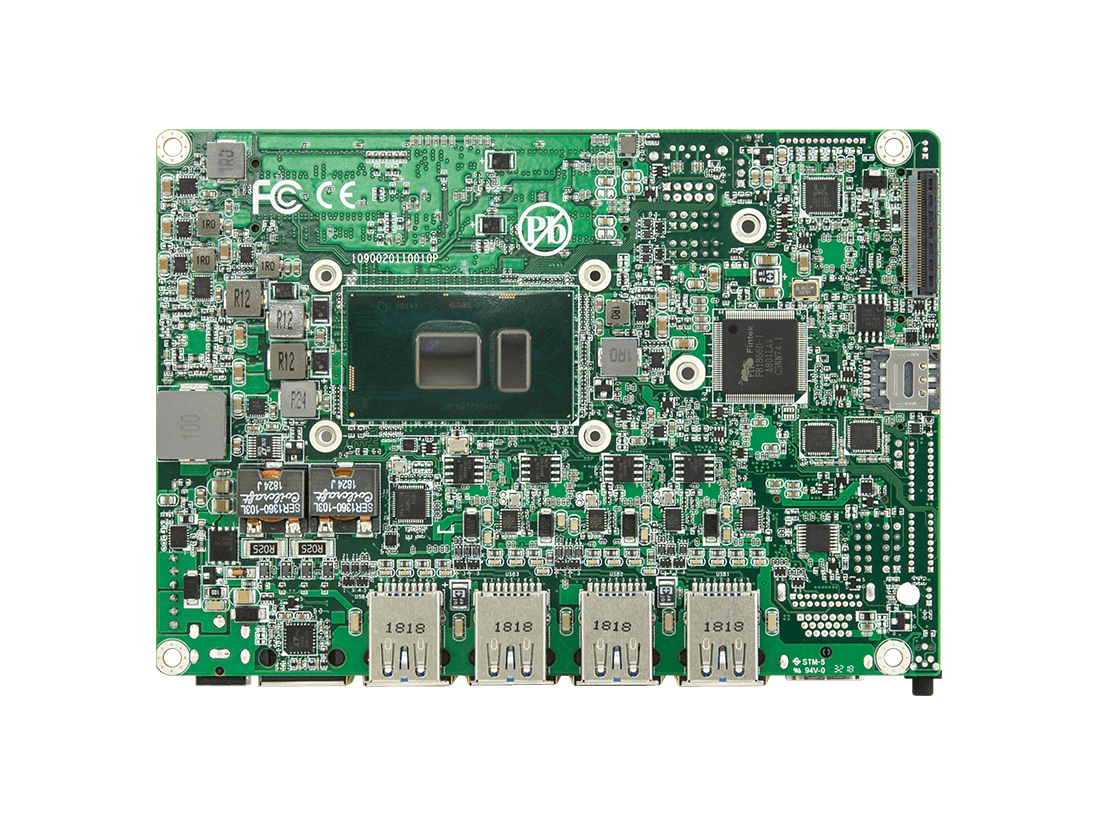

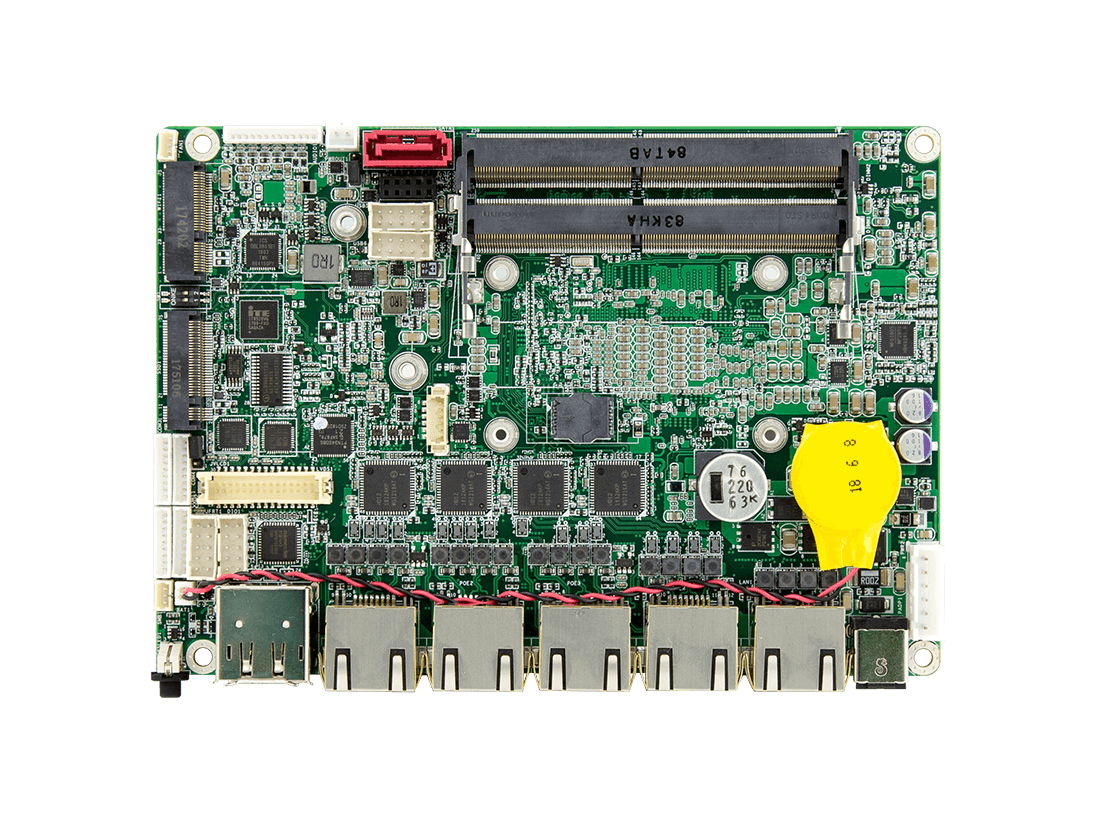

EmCORE-i90U2
7th Generation Intel® Core™ i7/ i5/ i3 U-series Processor 3.5" Compact Board
EmCORE-i90U2
7th Generation Intel® Core™ i7/ i5/ i3 U-series Processor 3.5" Compact Board
Features
- Soldered onboard 7th Generation Intel® Core™ U-series Processor
- Five Gigabit Ethernet ports (4 ports support PoE, 802.3af)
- HDMI, DisplayPort and LVDS
- Integrated micro SIM Socket for mobile telecommunication
- Support Intel® vPro & AMT (for Core i7 & i5 only)
- Wide Range Temperature: -40 ~85°C
規格表
Specification
System
| CPU | Soldered onboard 7th Gen. Intel® Core™ Processor i7-7600U 2.8GHz/3.4GHz, i5-7300U 2.6GHz/2.8GHz, i3-7100U 2.4GHz |
|---|---|
| Memory | 2 x DDR4 SO-DIMM sockets, supporting 2133/1866MHz SDRAM up to 32GB |
| BIOS | AMI UEFI BIOS |
| TPM | Support TPM 1.2 SLB9660 & 2.0 SLB9665 function onboard (OEM request) |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Super I/O | Fintek F81866 |
|---|---|

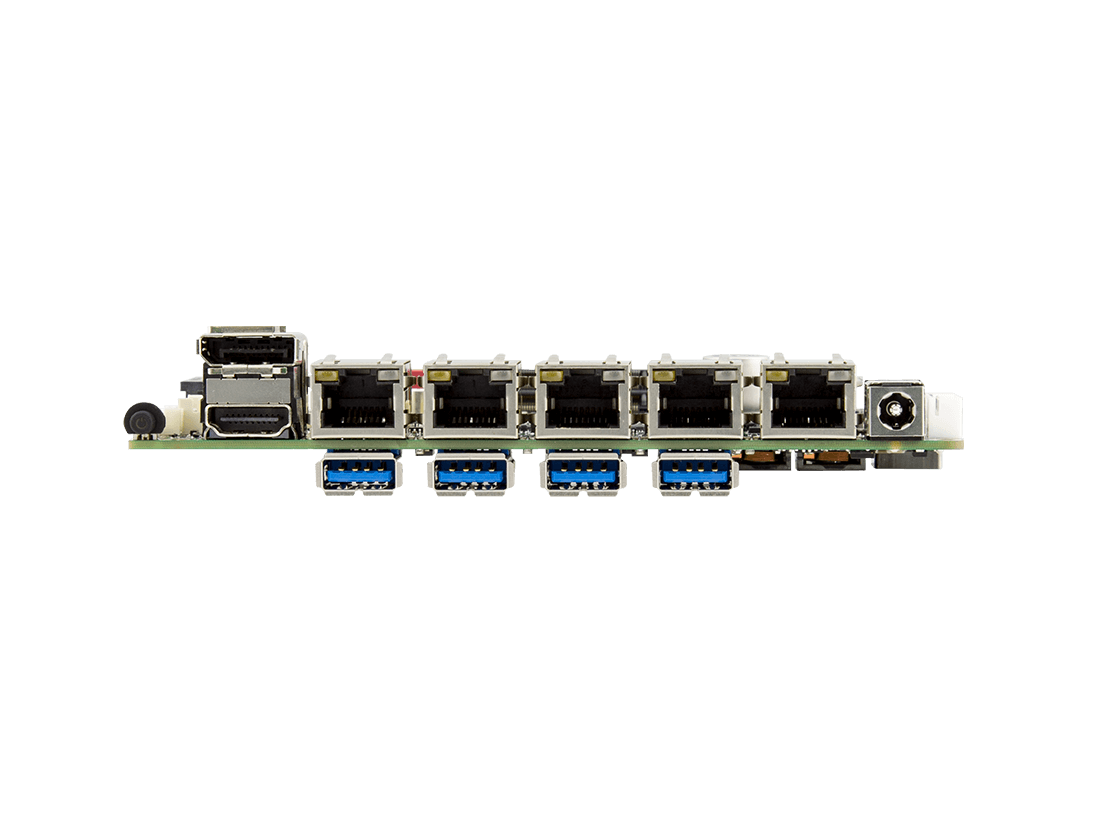

| USB Port | 4 x USB 3.0/2.0 ports 4 x USB 2.0 ports |
| Serial Port | 4 x RS-232/422/485 selectable |
| Expansion | 1 x M.2 E-key (2230) socket for Wi-Fi module 1 x NANO SIM socket 4 x PCIe x1 lanes or 1 x PCIe x4 with FFC connector (OEM request) |
| Storage | 1 x Serial ATA port with 600MB/s HDD transfer rate 1 x M.2 B-key (2242) socket for SATA SSD or LTE, depending on module |
| Ethernet Chipset | 1 x Intel® i219LM PCIe PHY controller 4 x Intel® i210IT PCIe GbE controllers supporting 802.3af PoE |
| Digital I/O | 8-bit Programmable |
| Audio | Realtek® ALC269 5.1 Channel HD Audio CODEC, Mic-in/ Line-in/ Line-out |
Display
| Graphics Chipset | Integrated Intel® UHD Graphics 620 |
|---|---|
| Graphics Interface | Dual Channel 24-bit LVDS 1 x DisplayPort 1.2 1 x HDMI 1.4 port |
OS support
| Windows 10 64-bit Linux: Ubuntu |
Mechanical & Environmental
| Power Requirement | 9~15V or 15~36V DC-In (configurable via DIP switch) |
|---|---|
| Power Consumption | 19V, 3.16A (i7-7600U, full loading w/ PoE) 19V, 3.15A (i5-7300U, full loading w/ PoE) |
| Operating Temp. | 40 ~ 85ºC (-40 ~ 185ºF) |
| Operating Humidity | 10 ~ 95% @ 85ºC (non-condensing) |
| Dimension (L x W) | 146 x 102 mm (5.7" x 4.0") |
Ordering Information
| EmCORE-i90U2-WT-7600U | 7th Generation Intel® Core™ i7-7600U 3.5” compact board |
|---|---|
| EmCORE-i90U2-WT-7300U | 7th Generation Intel® Core™ i5-7300U 3.5” compact board |
| EmCORE-i90U2-WT-7100U | 7th Generation Intel® Core™ i3-7100U 3.5” compact board |
配件
Optional Accessories
| CBK-09-90U2-00 | Cable kit 1 x Audio cable 1 x SATA cable 1 x SATA power cable 2 x USB 2.0 cables 4 x COM cables |
|---|
