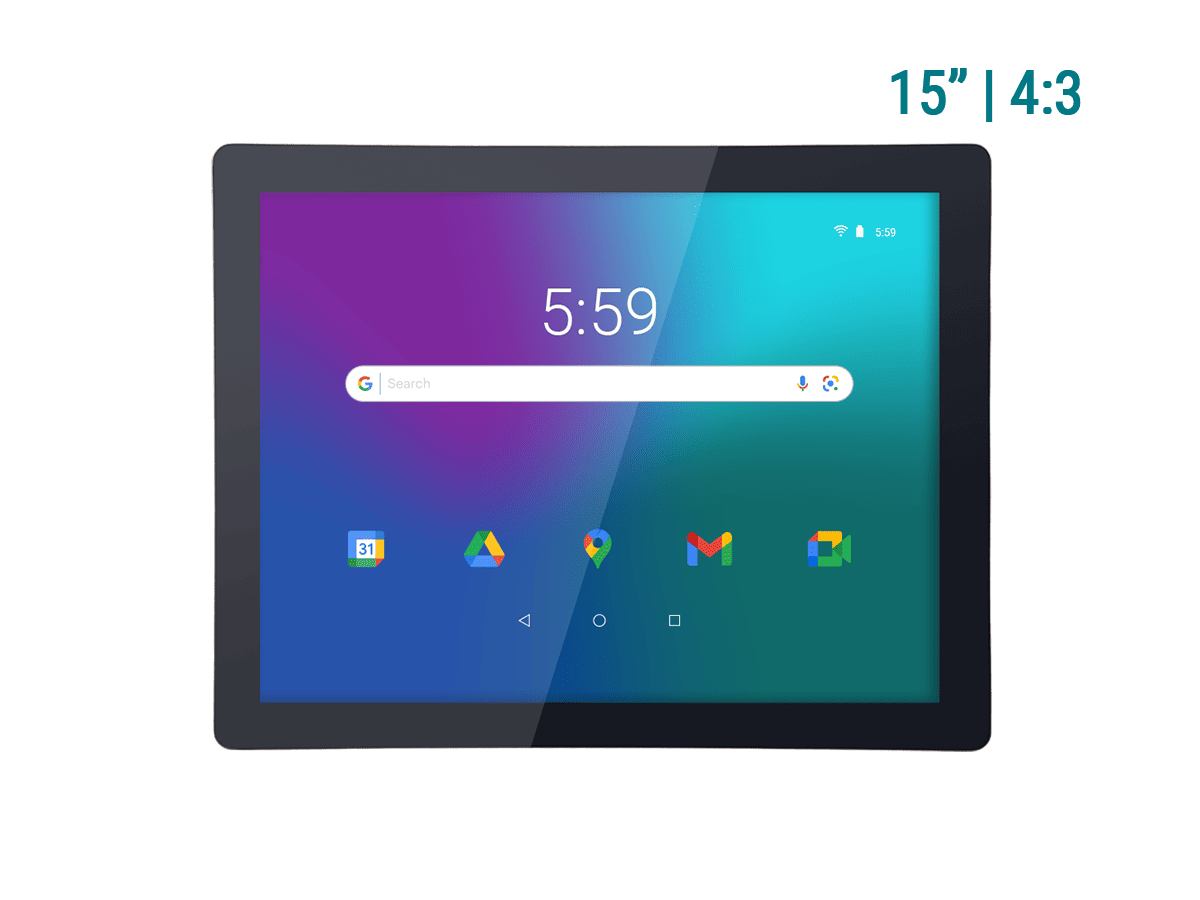

IOT-150CA
Android Industrial Panel PC
IOT-150CA
Android Industrial Panel PC
主要特点
- Built-in CAN bus, RS-232, LAN, WLAN, WWAN (Optional)
- Wide range DC power input (9~36V)
- Aluminum alloy structure makes it light, firm and stable
- Support flat-mount and VESA mount
规格表
System
| Processor | MediaTek Genio 350 Quad-Core SoC |
|---|---|
| Architecture | 4x Cortex A53 (2.0GHz) |
| Operating System | Android 13 |
| Memory | 4GB LPDDR4X SDRAM |
| GPU Core | Mali-G52 |
LCD Display
| Size / Type | 15.0" TFT LCD Project |
|---|---|
| Resolution | 1024 x 768 |
| Contrast Ratio | 800:1 |
| Brightness (cd/m²) | 400 nits (Optional 1000 nits) |
| Touch Screen | 5-wire Analog Resistive |
| View Angle (R/L/U/D) | 80°/80°/70°/80° typ. |
I/O Interface
| Ethernet | 1 x RJ-45 Ethernet, 10/100Mbps |
|---|---|
| DB9 Interface | 1 x RS-232/422/485 COM port 1 x RS-232 COM port |
| USB Ports | 2 x USB 2.0 Type-A port 1x micro USB 2.0 |
| DIO | 3 x DI, 3x DO (dry contact), CAN bus |
Storage
| eMMC | 64GB EMMC 5.1 |
|---|---|
| SD Socket | Max. 256GB |
Wireless Connectivity
| WLAN | IEEE 802.11 ac/a/b/g/n |
|---|---|
| Bluetooth | Bluetooth 5.0 |
| GNSS | (A)GPS+Glonass/Beidou/Galileo |
Installation
| VESA Mount | 75 mm x 75 mm |
|---|---|
| Flat Mount | Yes |
Power System
| DC Input | 3 pin terminal block 9~36V Auto detection |
|---|
Touch Screen
| Type | Projected Capacitive Touch (up to 10 points) |
|---|
Mechanical & Environmental
| Operating Temp. | -20°C ~ 70°C (-4 ~ 158°F) |
|---|---|
| Storage Temp. | -30°C ~ 80ºC (-22 ~ 176°F) |
| Operating Humidity | 10 ~ 95% |
| Dimension (W x H x D) | 348.88 x 272.82 x 47.5 mm |
| Weight | TBD |
Ordering Information
| IOT-150CA | 1 x 15” Android Panel PC, WLAN, and Bluetooth 1 x GPS Antenna 1 x WiFi Antenna |
|---|
