Industrial Embedded Controller
ARES-1980
Industrial Embedded Controller
ARES-1980

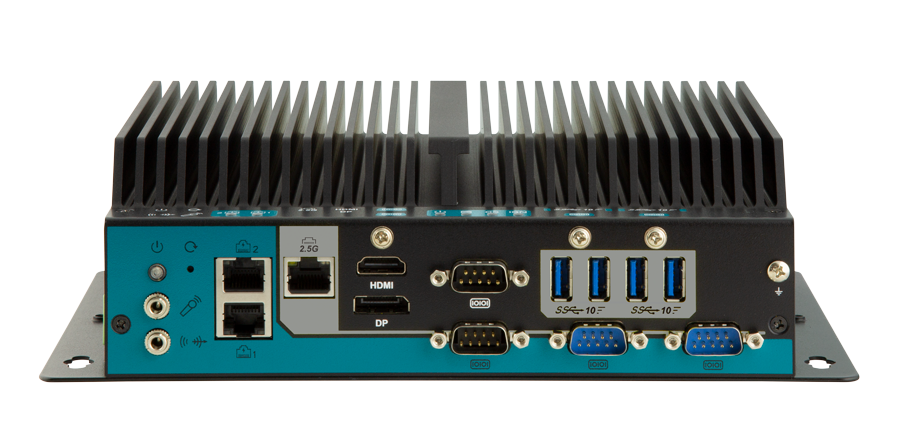

ARES-1980 is a compact-sized embedded controller designed with high-speed I/Os to improve production efficiency, allowing higher through rate while providing cutting edge computing performance with Intel’s 11th Generation Tiger Lake processors, that offers unparallel edge computing and enhanced AI performance for your applications

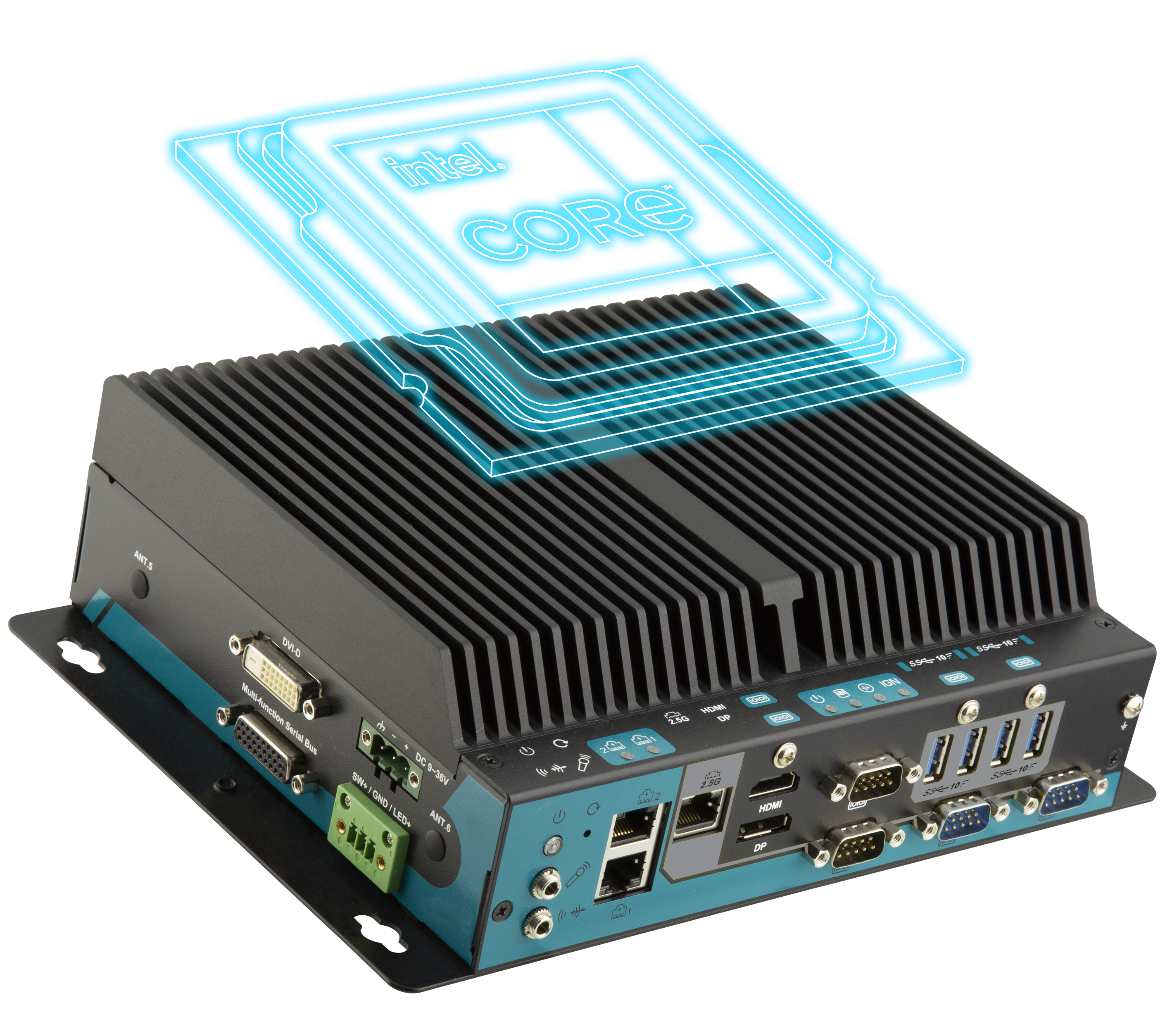

Do More with More Efficient CPU Design
Powered by Intel’s 11th Generation 10nm Processors, with the new and more efficient SuperFin technology, Intel has redefined 10nm process, given the 11th generation CPUs a large performance improvement
*Compared to last generation ARBOR ARES Model powered by Intel Skylake/Kaby Lake Processors

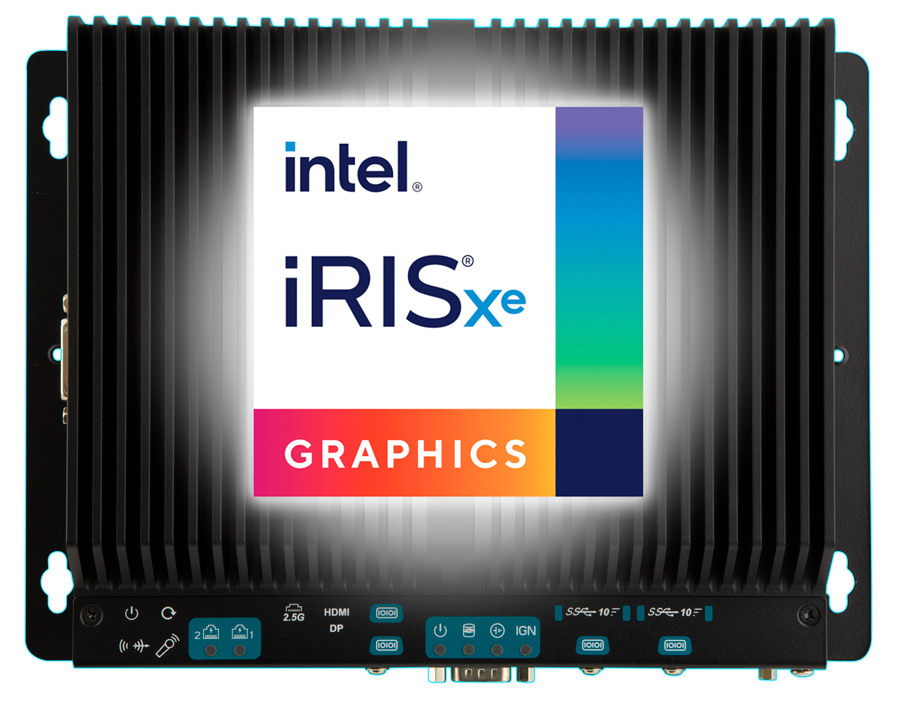

Intel’s Iris Xe Graphics
The Intel’s 11th Generation Tiger Lake processor has the latest integrated graphics technology Iris Xe Graphics with 96 execution units, hugely improved from previous generation of integrated graphics on both performance and efficiency, with Intel® DL Boost, the 11th Generation Core processors greatly improved AI Inferencing performance, accelerating AI workloads
High Performance I/O Design

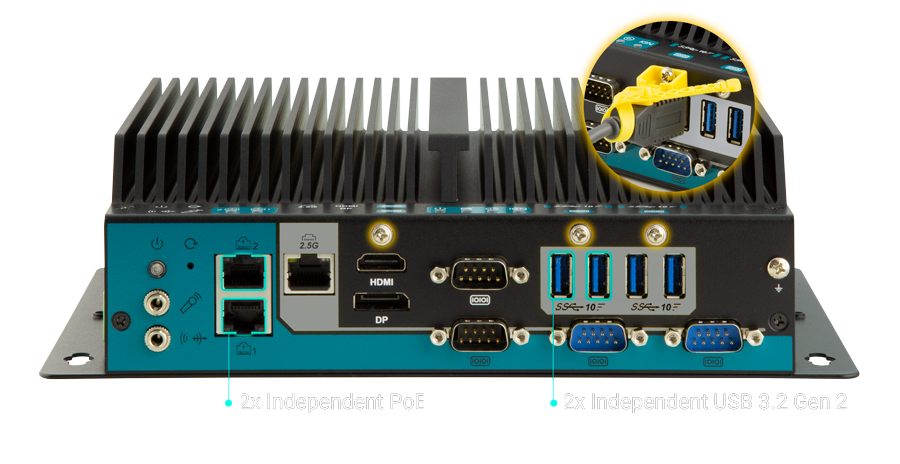

ARES-1980 has integrated high speed I/O connectivity, including USB 3.2 Gen 2, 2.5GbE Ethernet and more, Independent ports are also implemented to maximizing power delivery and data bandwidth, allowing high speed peripherals to take full advantage of the connectivity

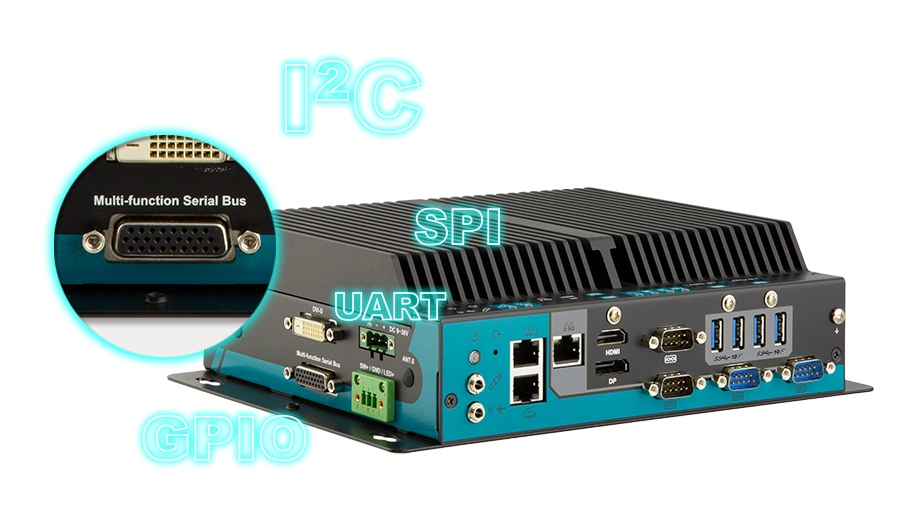

Multi-Serial Bus
ARBOR’s Multi-Serial Bus provides a single connectivity to special connectivity and sensors, such as I2C, SPI, UART and GPIO support.

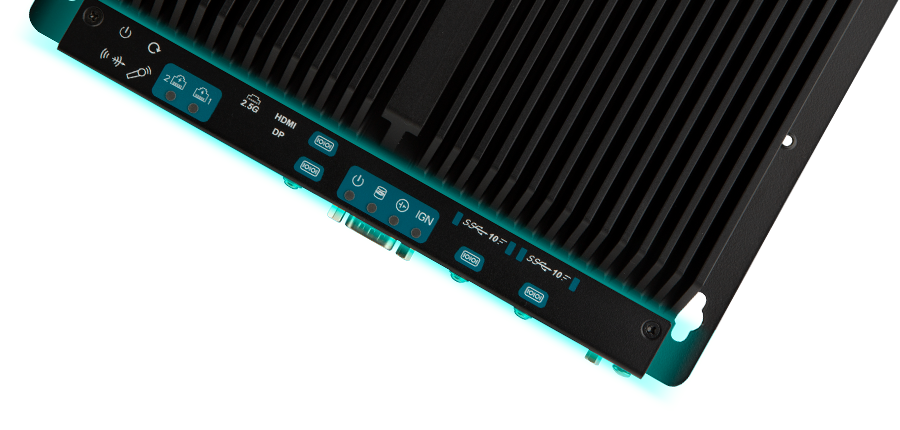

LED Indicators
To give Maintenance Workers a hand, I/O label and LED indicators are design to be easily visible and understood, save valuable time from diagnostics

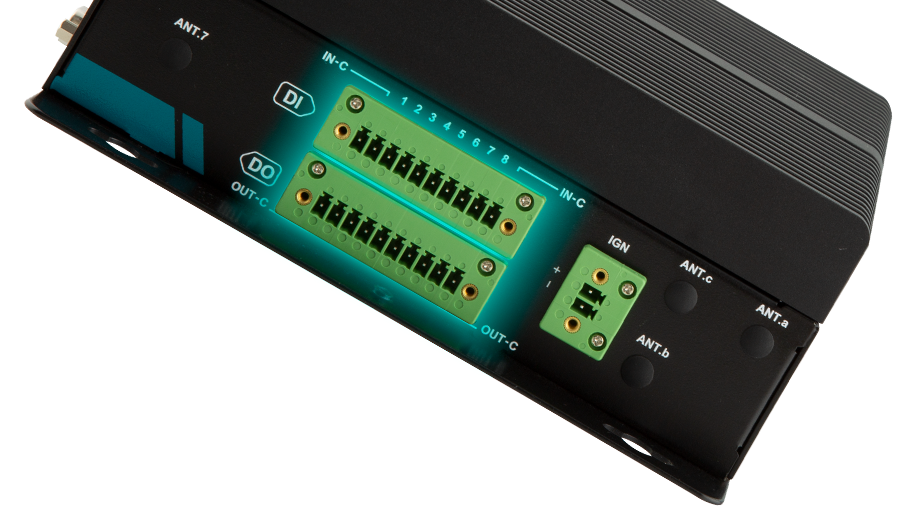

Improved Digital I/O Response Time
ARES-1980 is 100x faster in DI/O response time, more flexible for automation configurations to improve efficiency

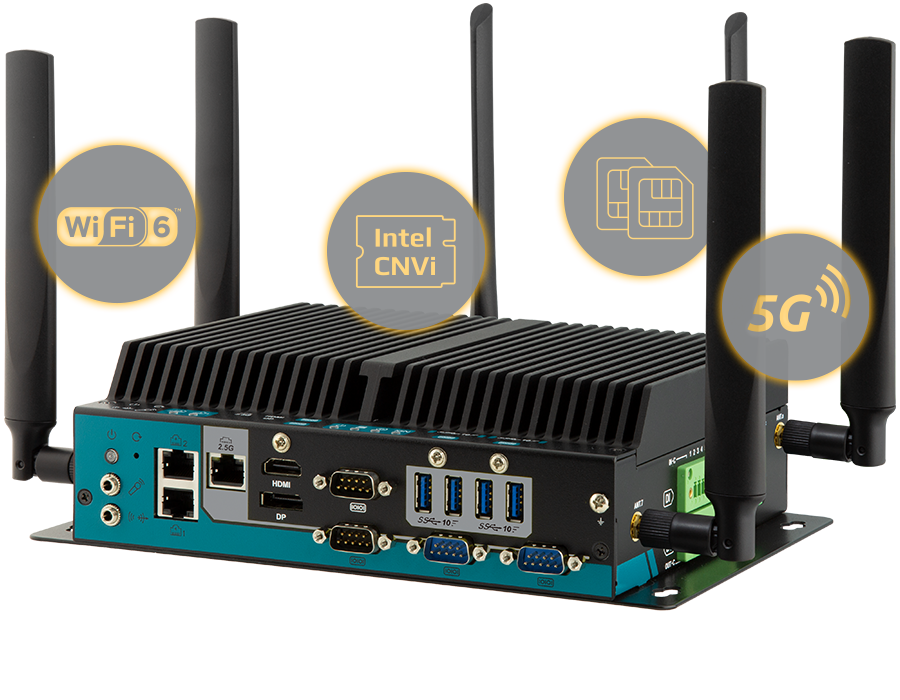

High Performance Communication
Intel CNVi & Wi-Fi 6
ARES-1980 supports Wi-Fi 6 modules with Intel’s CNVi interface, with better efficiency and more cost effective
5G Connectivity
ARES-1980 supports 4G/LTE, Sub 6 and mmWave modules, also support dual SIM switch functionality, ideal for vehicle applications where multiple region’s services are required
Application Scenarios

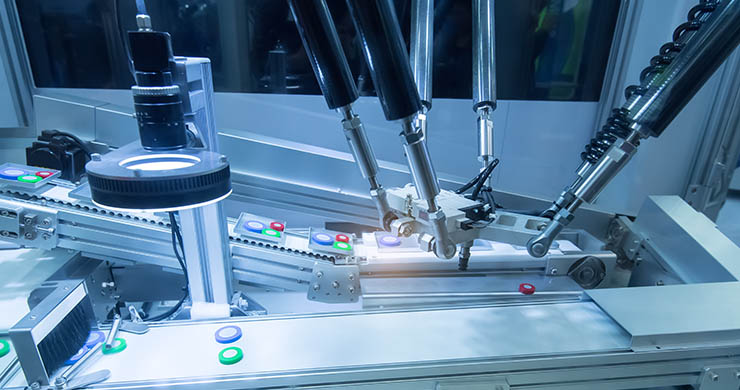

Machine Vision Application
With the quicker response time, a better rate of triggers can be applied in terms more items can be scanned at the same time, improve automation efficiency
In-Vehcile Application
ARES-1980 supports wireless connectivity, also have power on/off delay function built-in for in-vehicle use, ARES-1980 support dual SIM switch functionality, ideal for vehicle applications where multiple region’s services are required

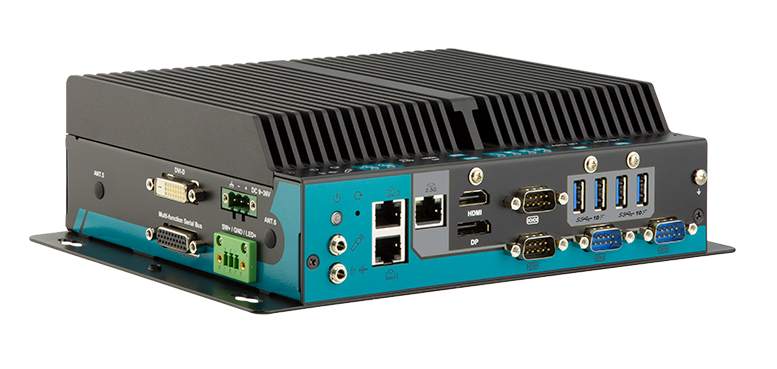

ARES-1980
- Onboard Intel® Core™ i Processor (Tiger Lake UP3)
- Support 2 x 260-pin DDR4 SO-DIMM sockets
- Support 5G (Sub-6G) module, M.2 NVMe SSD Gen3x4, USB 3.2 Gen 2, and 2.5 GbE LAN
- Rich I/O: 4 x COM/ 3 x LAN/ 4 x USB3.2/ Remote PWR
- Support Triple-display (DVI-D/HDMI/DP)
- Wide Power Input: 9~36 VDC
- Power on/off delay control / configurable ignition power control
- Support DirectX 12
