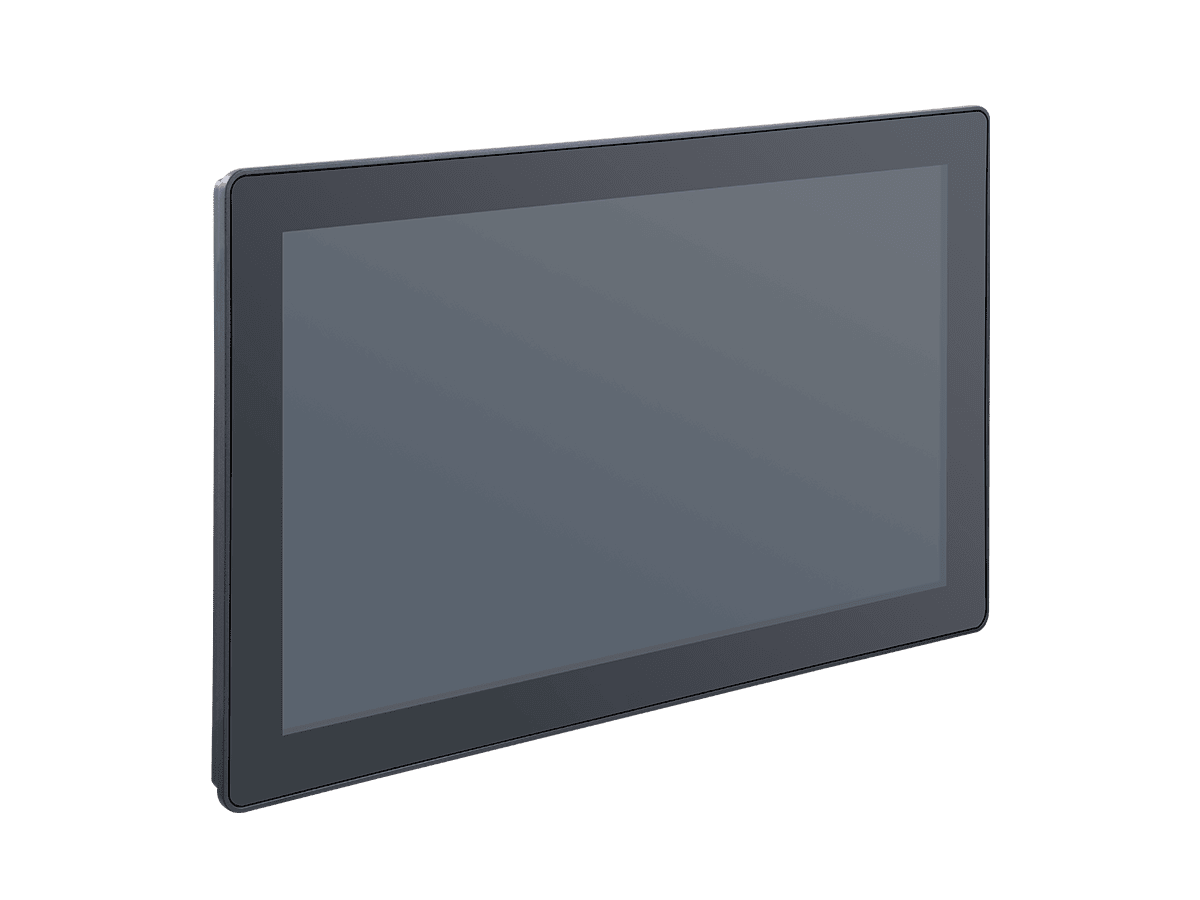

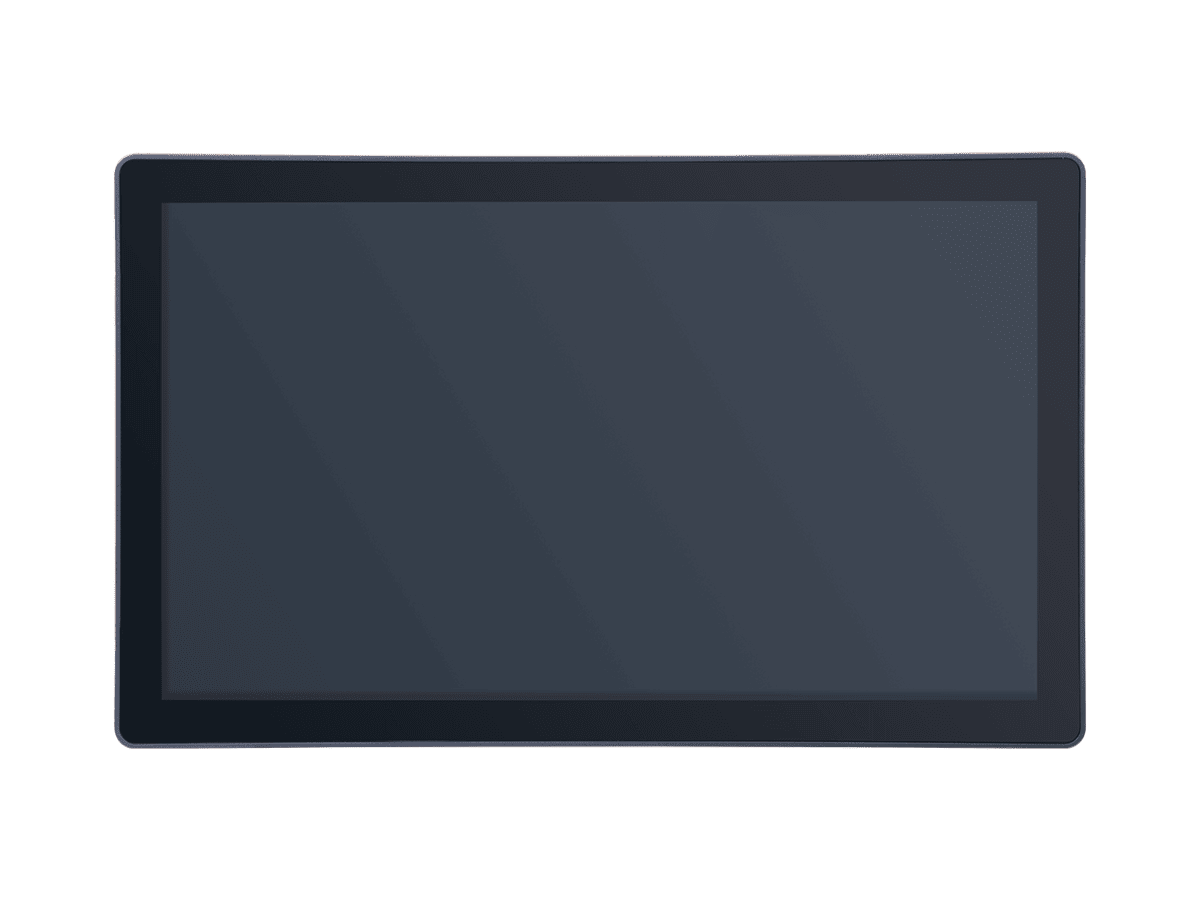

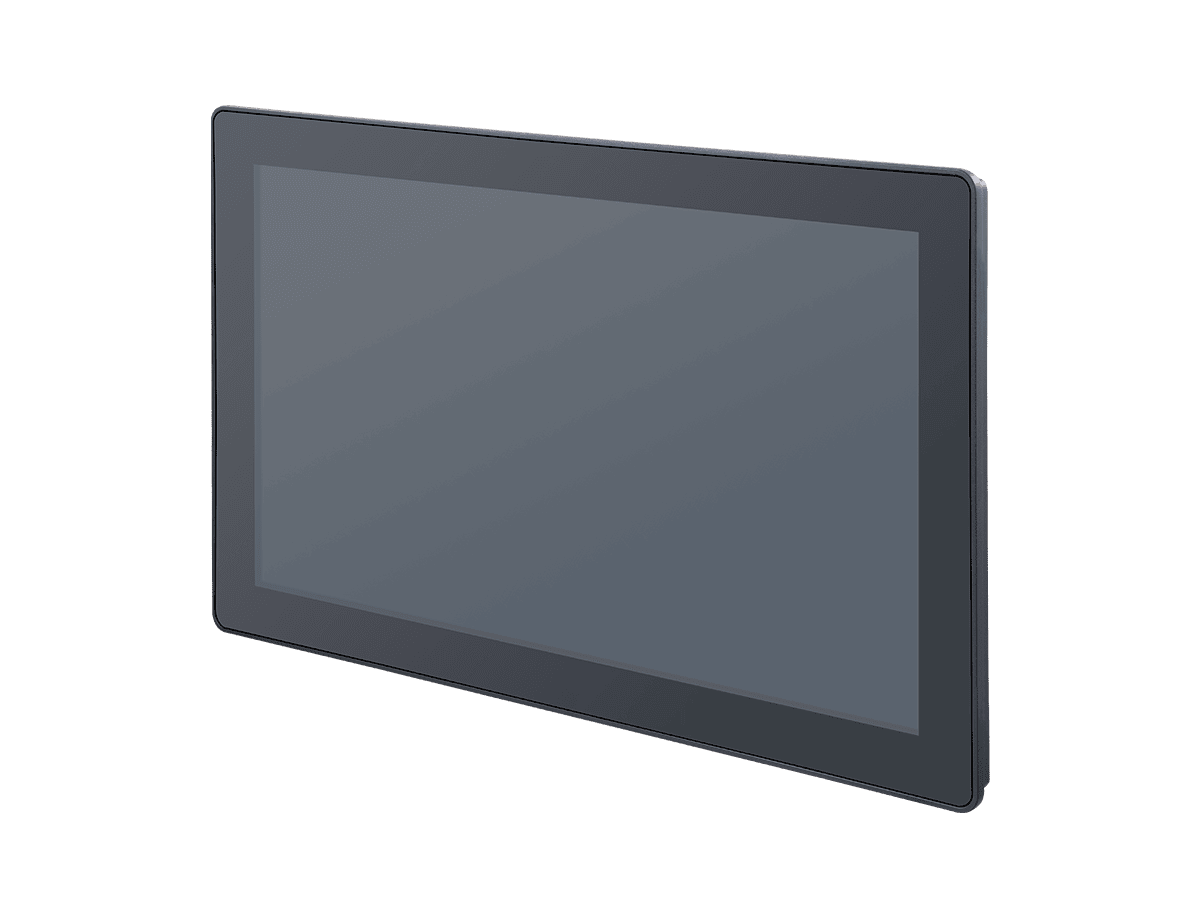

SP-211C-1J64
Industrial Fanless 21.5" 10 Points Multitouch Panel PC, Intel® Elkhart Lake J6412 Platform
SP-211C-1J64
Industrial Fanless 21.5" 10 Points Multitouch Panel PC, Intel® Elkhart Lake J6412 Platform
특징
- Intel® Celeron® J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz)
- 21.5 inches LCD panel with LED backlight, front panel support IP66
- Industrial-grade 10 points project capacitive touch screen
- Support Mini-PCIe/M.2 extension for multiple modules
- Support dual 2.5GbE LAN
- Support remote ON-OFF
- Grounding protection for product shell
- Support 1 x 2.5 inch HDD/SSD expansion
- Support standard VESA and panel mount
사양
System
`
| CPU | Intel® Elkhart Lake Celeron® J6412 processor (2.00 GHz/2.6GHz) |
|---|---|
| Memory | 1 x DDR4 2133/2400/3200hz SO-DIMM slot, up to 32GB 4GB DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® UHD Graphics for 10th Gen. Intel® Processors |
| LAN Chipset | Intel® L226V GbE (10/100/1000 Mbps) |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
LCD Display
| Size / Type | 21.5" TFT LCD Panel |
|---|---|
| Max. Resolution | 1920 x 1080 |
| Ratio | 16:9 |
| Luminance | 250 cd/m² |
| Touch Screen | P-cap Multi-Touch |
| Touch | 35,000,000 times |
| Contrast Ratio | 1000 |
| View Angle (U/D/R/L) | CR > 10, 89° (H)/89° (V) |
| Backlight | LED Backlight |
| Backlight Lifetime | 30000 Hrs |

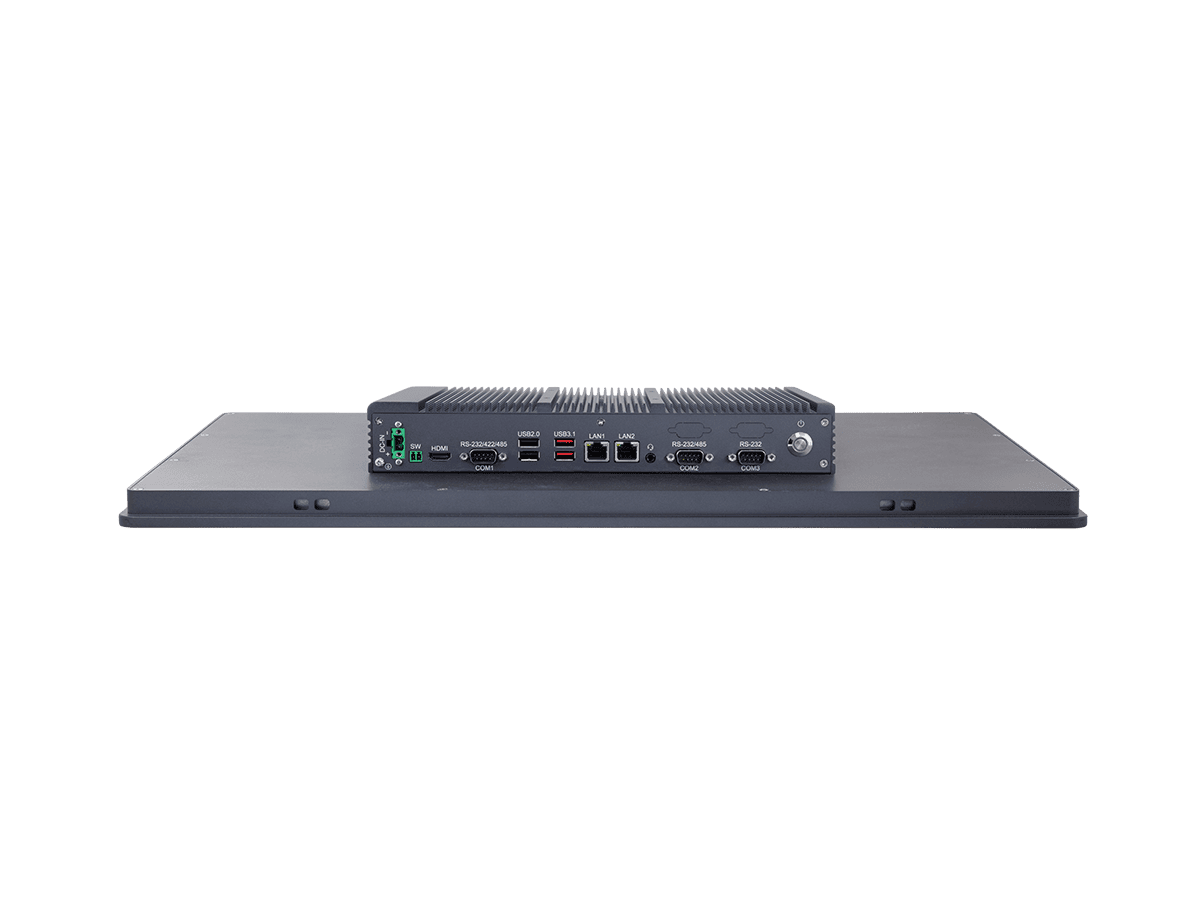

External I/O
| Serial Ports | 1 x RS232/RS422/RS485-COM1 1 x RS232(default)/RS485(Jumper)-COM2 1 x RS232-COM3 |
|---|---|
| USB Ports | 2 x USB2.0 2 x USB3.1 |
| LAN | 2 x RJ45 |
| Video Ports | 1 x HDMI (up to 4096x2160@60hz) |
| Remote On-Off | 1 x Remote ON-OFF |
Internal I/O
| Expansion | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x M.2 2230 slot (PCIe/ USB2.0 signal supported) 1 x M.2 2242 slot(SATA signal supported) 1 x SIM socket for 3G/4G 1 x 8bit GPIO 3.3V(jumper)/5V(default) power 1 x RS232-COM4 2 x RS232(RX/TX)-COM5/6 2 x USB2.0--For Touch 1 x SATA3.0/Power 5V for HDD |
|---|
Mechanical
| Mounting Type | Panel Mount, Wall and VESA-mount (75 x 75mm) |
|---|---|
| Chassis | Aluminum for front Panel and heat-sink, SECC for Rear Cover |
| Weight (Net) | 6.9 kg |
| Dimension (W x H x D) | 528.2 X 321.9 X 66mm |
| Cut out | 520.2 x 313.9mm |
| Ingress Protection | Front panel IP66 |
Environmental
| Operating Temp. | -10 ~ 50°C (SSD) |
|---|---|
| Storage Temp. | -40 ~ 70°C |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms operation |
| Sine Vibration | 5~500Hz, 2G Non-operation |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
Qualification
| Certification | CCC/CE/FCC |
|---|
Storage
| Device | 1 x M.2 2242 SSD slot 128GB M.2 SSD pre-installed*(CTOS) |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in 2 in 1) Realtek® ALC888S HD Audio codec |
|---|---|
| Speaker | 2 x 4Ω3W speaker |
OS
| Windows 10, Linux |
Power System
| Power Input | DC 12~36V 1 x Power Connector (2P Phoenix) |
|---|
Ordering Information
| SP-21PW-1J64 | Barebone 21.5”(16:9) Panel PC with Intel Celeron
Elkhart Lake J6412, P-touch, HDMI*1, USB*4, LAN*2, COM*3, DC12- 36V power input |
|---|---|
| SP-21PW-1J64-R4S128 | 21.5”(16:9) Panel PC with 4GB RAM & 128GB SSD, Intel Celeron
Elkhart Lake J6412, P-touch, HDMI*1, USB*4, LAN*2, COM*3, DC12- 36V power input |
| PAC-60W-FSP-SPA R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ USA POWER CORD |
| PAC-60W-FSP-SPA R1.1 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA R1.2 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA R1.3 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ IN POWER CORD |
