FPC-9000/9001/9002-L2U4

Robust Box PC with Intel® Xeon E3/7th & 6th Generation Core™ i7/i5/i3 Processor

FPC-9000/9001/9002-L2U4

Robust Box PC with Intel® Xeon E3/7th & 6th Generation Core™ i7/i5/i3 Processor
主な特長
  • Compatible with the Intel® OpenVINO™ toolkit
  • Fanless design
  • Wide range DC power input (9~36V)
  • DisplayPort x 1 + HDMI x1 + VGA x 1 and DVI x 1 (support 3 independent displays)
  • Rich I/O (10 x USB, 5 x GbE LAN, 4 x COM)
  • Power on/off delay control / configurable ignition power control
  • TPM 2.0 support (optional)
  • RTC battery service window support
  • Two-mPCIe for optional Wi-Fi/3G/4G/GPS or I/O expansion supported
  • 2 SATA SSD (1 x removable, 1 x internal), support RAID 0,1

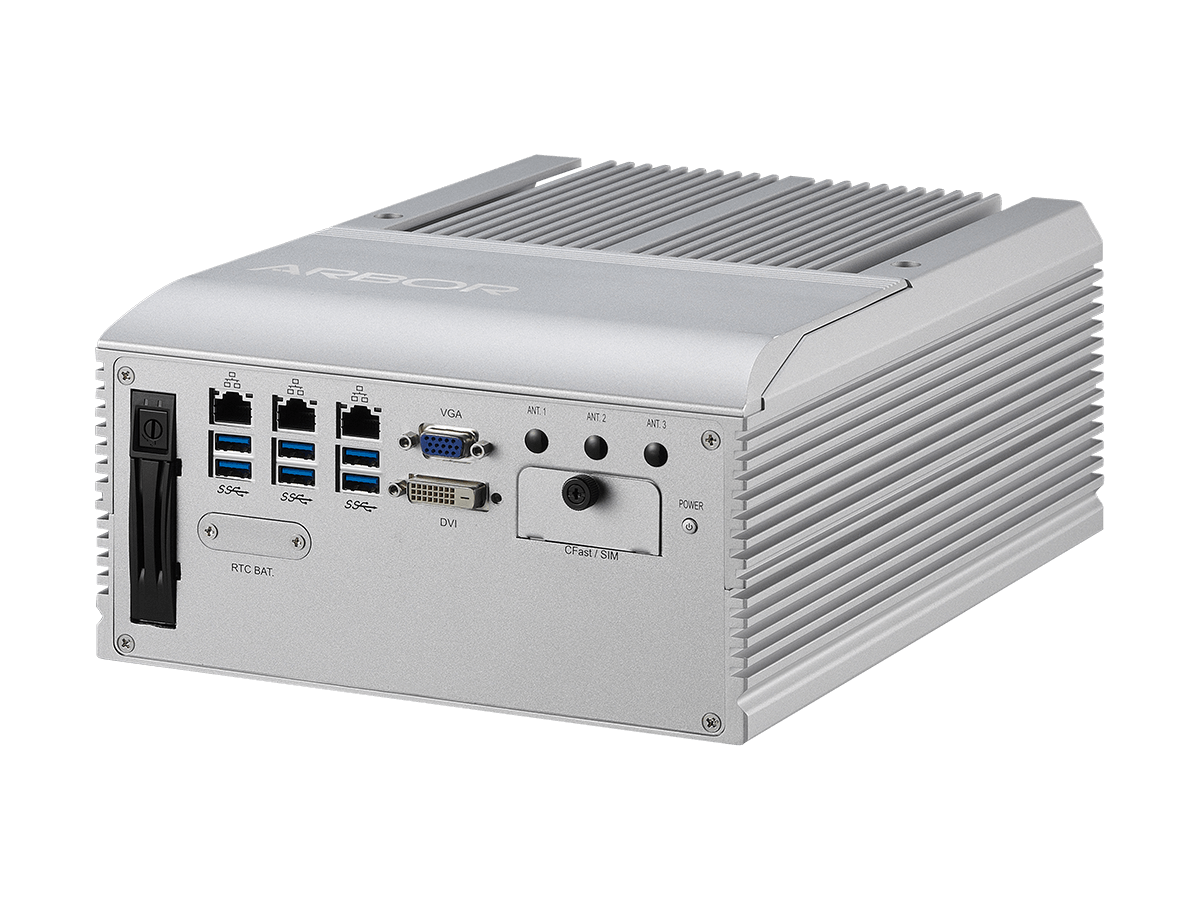

  • Front-accessible I/O support
比較リストに追加
仕様

System

CPU Intel® Xeon® E3/6th & 7th generation Core™ i7/i5/i3 processor in LGA1151 socket
Memory 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2400 MHz SDRAM up to 32GB
Chipset Intel® C236
Graphics Integrated Intel® HD Graphics
ATA 2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset 2 x Intel® WGI211AT GbE controllers
1 x Intel® WGI219LM GbE controller w/ iAMT 11.0
2 x Intel® WG82583V GbE controllers
Watchdog Timer 1~255 levels reset

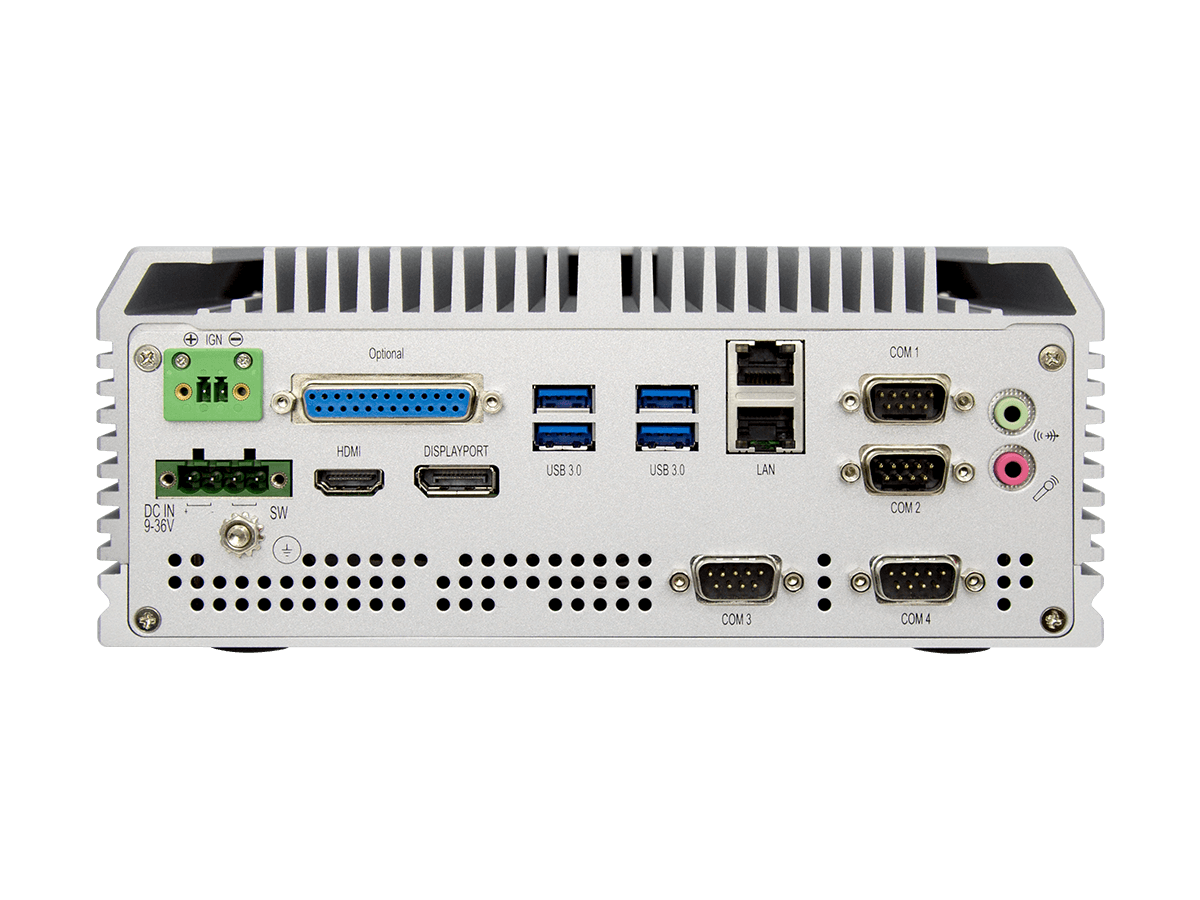

I/O Interface

Serial Port 2 x RS-232 / 422 / 485 configurable via DB-9 connectors
2 x RS-232 ports via DB-9 connectors
USB Port 6 x USB 3.0/ 2.0 ports 4 x USB 3.0/ 2.0 ports
LAN 5 x RJ-45 ports for GbE
Video Port 1 x DisplayPort
1 x HDMI
1 x DB-15 female connector for Analog RGB
1 x DVI-D female connector for digital video output
* Support 3 independent displays
Expansion Bus 1 full-size & 1 half-size Mini-card interconnected for optional WiFi/3G/4G/GPS or I/O Expansion
1 x SIM socket

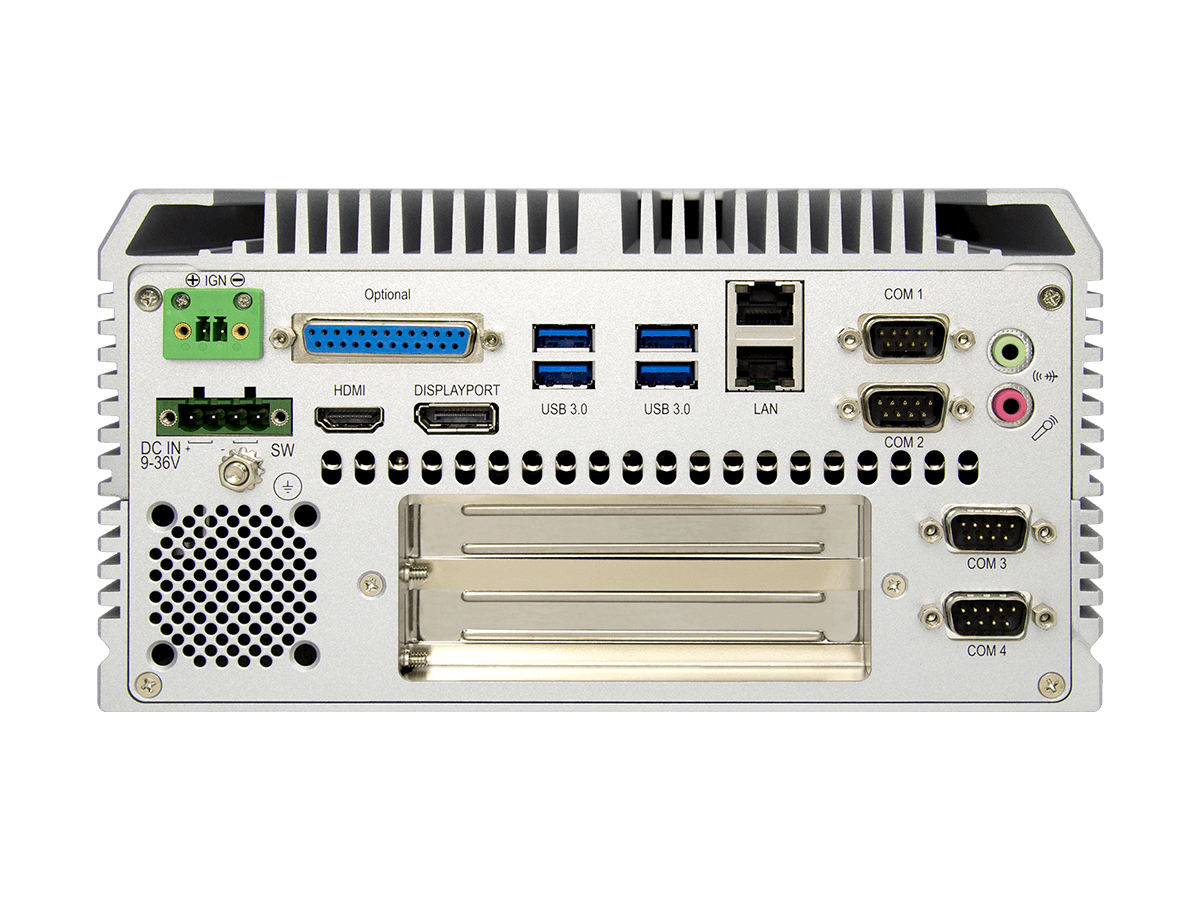

1 x PCIe x16 slot +1 x PCI / FPC-9001-L2U4
1 x PCIe x16 slot +1 x PCIe x8 slot (via x 4 lanes) / FPC-9002-L2U4
Selectable Port 1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO)
Audio Mic-in / Line-out

Environmental

Operating Temp. -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 35W~65W TDP CPU, fanless)
Storage Temp. -40 ~ 75°C (-40 ~ 167°F)
Operating Humidity 10 ~ 95% @ 55°C (non-condensing)
Vibration 3 Grms / 5~500Hz / random operation w/ SSD
Shock Operating 40G (11ms), Non-operating 60G with SSD

OS Support

System Windows 10 IoT Enterprise 64-bit (For 7th Gen Intel CPU)
Windows 7 / Windows8.1/ Windows 10 IOT (For 6th Gen Intel CPU)
Linux (Kernel: 4.4.x)

Storage

Type 2 x 2.5” drive bays
1 x CFast socket, can be outside accessible

Qualification

Certification CE, FCC Class A

Power Requirement

Power Input DC 9 ~ 36V input (w/ 4-pin DC input terminal block,combining remote power on/off switch)
Ignition Switch 2-pin terminal block: IGN & GND
Power Consumption MAX. 75W (w/35W TDP CPU, w/o I/O card)
MAX. 105W (w/65W TDP CPU, w/o I/O card)

Mechanical

Construction Aluminum Alloy
Mounting Wall-mount
Weight 6.4kg (14.1Ib) / FPC-9000-L2U4
7kg (15.43Ib) / FPC-9001-L2U4, FPC-9002-L2U4
Dimensions (W x D x H) 225 x 292 x 90 mm (8.86" x 11.50" x 3.54") / FPC-9000-L2U4
225 x 292 x 120 mm (8.86" x 11.50" x 4.72") / FPC-9001-L2U4, FPC-9002-L2U4

Ordering Information

FPC-9000-L2U4 Fanless box PC for 35W~65W CPU, w/ 10 x USBs, 5x GbE LANs
FPC-9001-L2U4 Fanless box PC for 35W~65W CPU,5 x LAN, 10 x USB3,4 x COM,w/ 1 x PCI + 1 x PCIe x16
FPC-9002-L2U4 Fanless box PC for 35W~65W CPU,5 x LAN, 10 x USB3,4 x COM, w/ 1 x PCIe x16 + 1 x PCIe x8
アクセサリー

Optional Accessories

  • PAC-120W6B-FSP-ES
    120W AC/DC adapter kit w/ 2-pin / 3-pin / 4-pin block
  • PAC-180W6C-FSP-ES
    180W AC/DC adapter kit w/ 2-pin / 3-pin / 4-pin block
  • WMK-7000
    Wall-mount kit for FPC-7XXX Series

Optional Configuration (*CTOS Kit)

  • 240GB SSD
    Intel® 2.5” 240GB SATA III SSD kit
  • WiFi-AT4550
    Atheros QCNFA324 Wi-Fi module w/ 2x30cm internal wires
  • ANT-D11
    1 x Wi-Fi Dual-band 2.4G/5G antenna
  • ANT-H11
    2dBi HSUPA Antenna
  • Core™ i7-7700
    Intel® 7th Gen. Core™ i7-7700 processor, L2/8M, 3.6G
  • Core™ i7-7700T
    Intel® 7th Gen. Core™ i7-7700T processor, L2/8M, 2.9G
  • Core™ i5-7500
    Intel® 7th Gen. Core™ i5-7500 processor, L2/6M, 3.4G
  • Core™ i5-7500T
    Intel® 7th Gen. Core™ i5-7500T processor, L2/6M, 2.7G
  • Core™ i3-7101TE
    Intel® 7th Gen. Core™ i3-7101TE processor, L2/3M, 3.4G
  • Xeon™ E3-1268L-V5
    Intel® 6th Gen Xeon™ E3-1268L processor, L2/8M, 2.4G
  • MK-4C-4G / 8G / 16G
    DDR4-2133 4GB/8GB/16GB SDRAM DIMM kit
*CTOS means Configure-to-Order Service.
