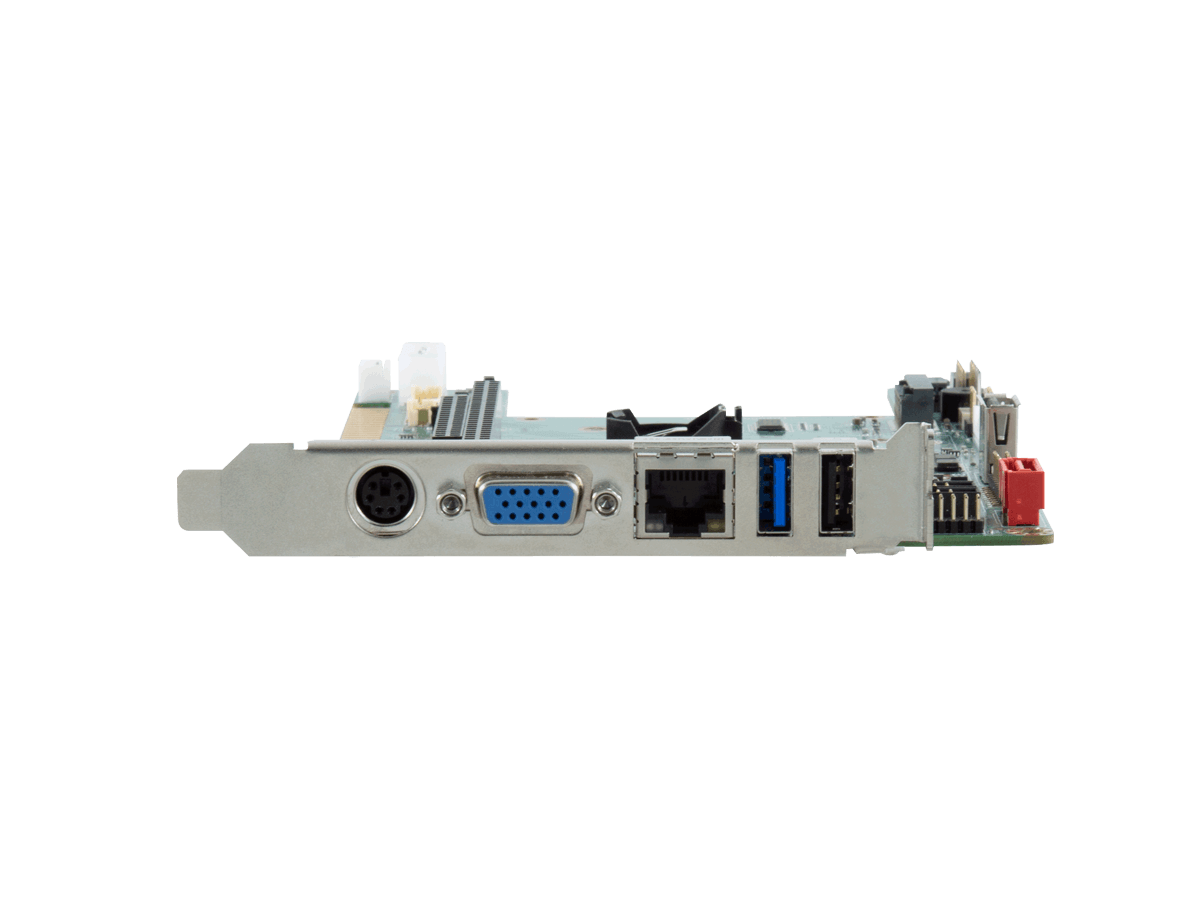

EmCORE-i230R
Onboard Intel® N2930 Processor in Half Size ISA SBC
EmCORE-i230R
Onboard Intel® N2930 Processor in Half Size ISA SBC
Features
- Fanless design
- Soldered onboard Intel N2930 processor
- Single Gigabit Ethernet Port
- Analog RGB port
- Dual Channels 24-bit LVDS
- PC/104 ISA interface
- Extended Operating Temp.: -20 ~ 70ºC
仕様
Specification
System
| CPU | Solderd onboard Intel® Celeron Processor N2930 1.83Ghz |
|---|---|
| Memory | 1 x DDR3L SO-DIMM socket, supporting up to 8GB 1066/1333MHz/s SDRAM |
| BIOS | Insyde BIOS |
I/O Interface
| Super IO Chipset | Fintek F81866D-I |
|---|---|
| Serial Port | 4 x COM Ports - 3 x RS-232 ports - 1 x RS-232/422/485 selectable port |
| Parallel Port | 1 x LPT port, SPP/EPP/ECP mode selectable |
| Digital I/O | 8-bit programmable Digital Input/ Output |
| USB Ports | - 4 x USB 2.0 ports (One port with Type A connector on bracket) - 1 x USB 2.0/3.0 port with Type A connector on bracket |
| Expansion | 1 x NGFF M.2 E-key socket support PCIex1 lane, USB 2.0 port 1 x NGFF M.2 M-key socket support PCIex1 lane, SATA port 1 x PC-104 slot, ISA interface |
| Storage | - 1 x SATA connector - 1 x NGFF M.2 M-key socket to support SATA depending on SSD module |
| Ethernet | 1 x GbE by Qseven™ CPU Module |
| Audio | HD link connector |
Display
| Graphic Interface | 1 x VGA connector on bracket LCD: 1 x Dual Channels 24-bit LVDS connector |
|---|
OS Support
| Windows 10 IoT Ubuntu |
|---|
Mechanical & Environmental
| Power Requirement | +/-12VDC,+/-5VDC from backplane |
|---|---|
| Operating Temp. | -20 ~ 70ºC (-4 ~ 158ºF) |
| Operating Humidity | 10 ~ 95% @ 70ºC (non-condensing) |
| Dimension (L x W) | 185 x 122 mm (7.3” x 4.8”) |
Ordering Information
| EmCORE-i230R | EmQ-i230B-N2930 + PBQ-2000 Half size ISA SBC Form Factor Q7 carrier board |
|---|---|
| FCDB-1111 | Realtek ALC888 HD Audio daughterboard |
| FCDB-1110 | Realtek ALC655 AC97 Audio daughterboard |
| Note * Note: Due to the limitation of the Intel Bay Trail processors, EmQ-i230B does not support following features: - Bus Mater Cycles - DMA - LPC Memory Mapped Transactions - IRQ0, IRQ1, IRQ2, IRQ8, IRQ9, IRQ13, IRQ14 - ISA Enable (IE) bit - PnP |
