LYNC-817

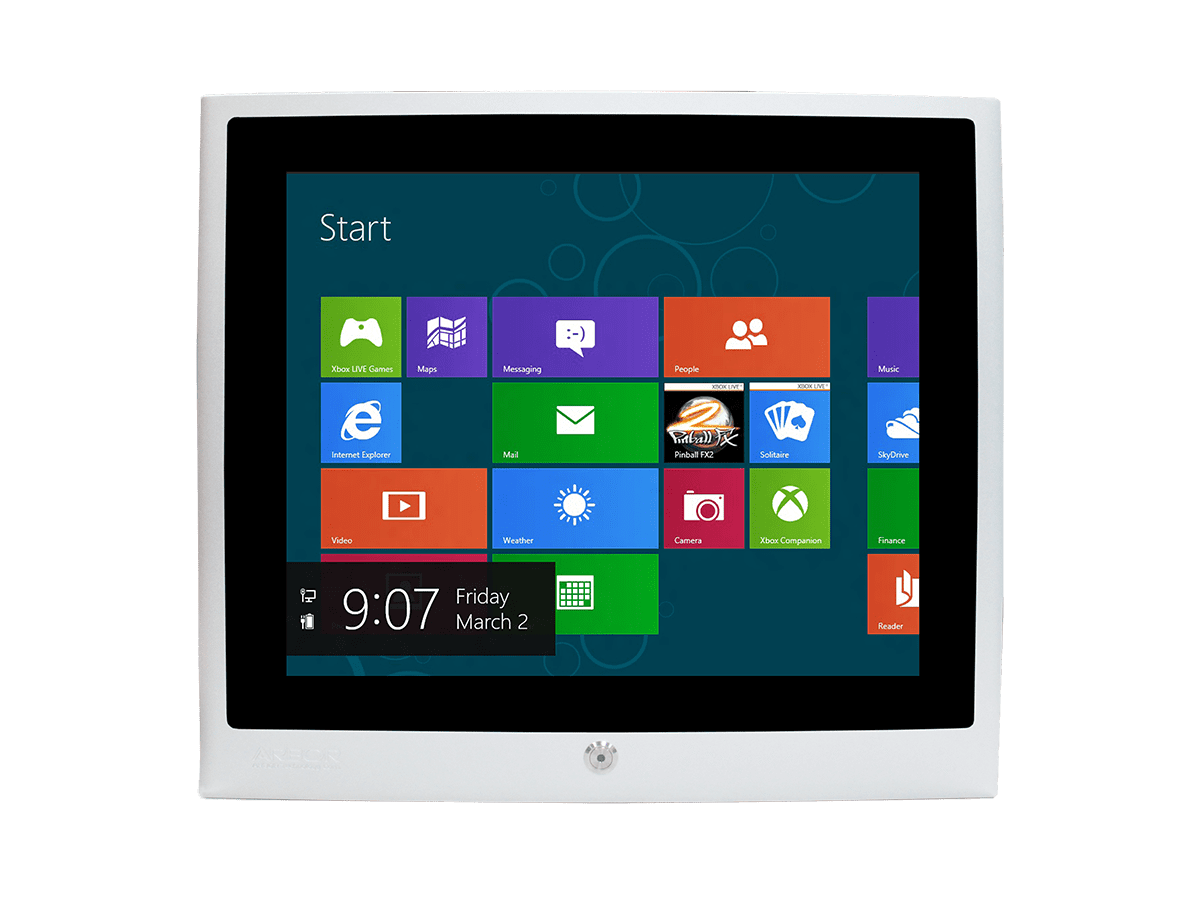

Fanless 17” Industrial Panel PC with Intel® Celeron® Processor J1900
LYNC-817
LYNC-817
LYNC-817

LYNC-817

Fanless 17” Industrial Panel PC with Intel® Celeron® Processor J1900
Features
  • Less cables, fanless design
  • User Selectable Modularized Design
  • 17” 1280 x 1024 SXGA LCD Display w/ LED Backlight
  • Front Panel IP65 Compliant
  • Serial Ports (RS-485), w/ Auto-flow Control
  • Mini-card Sockets x 1, PCI x 1 or PCIe x 1
  • Semi-Piercing DB9 Hole Reserved for Field-bus Card
  • SMA Antenna Holes for optional WiFi Function
  • 9~36V Wide Range DC Input
Aggiungi per Confrontare
Specifica

System

CPU Intel® Celeron® Processor J1900 2.0GHz
Memory 1 x DDR3L SO-DIMM Socket, supporting 1066/1333 MHz SDRAM up to 8GB
1 x 4GB DDR3L SO-DIMM memory module installed)
LAN 2 x Intel® I210AT GbE controllers
Watchdog Timer 1~255 levels reset

LCD Display

Size / Type 17" TFT LCD Panel
Max. Resolution 1280 x 1024, SXGA
Max. Colors 16.2M
Luminance 350 cd/m²
Touch Screen 5-wire Analog resistive

External I/O

Serial Ports 2 x RS-232 and 2 x RS232/485 ports with auto-flow design, all are DB9 connectors
USB Ports 1 x USB 3.0 Type-A USB port
3 x USB 2.0 Type-A ports
LAN 2 x RJ-45 GbE ports
Video Ports 1 x DVI-I connector
Wi-Fi 2 x SMA antenna holes for optional Wi-Fi function
Audio Line-out

Storage

1st Device 1 x outside-accessible CFast slot
2nd Device 1 x outside accessible 2.5” Drive Bay (Deault), or CFast slots (optional)

Button & Indicator

Function Key Power on/off
LED Indicator Power on LED

Power System

Power Input DC 9 ~ 36V
Power Consumption Max. 28.0W (w/o I/O cards)

Mechanical

Mounting Type Panel mount, VESA-75 / 100 mounting
Chassis Panel-mounting chassis, aluminum front bezel and SECC steel chassis
Weight (Net) 3.4 kg (without VESA bracket)
Dimensions (W x H x D) 389.93 x 309.93 x 46.80 mm (15.4” x 12.2” x 2.37”)

Environmental

Operating Temp. -0ºC ~ 55ºC (-32 ~ 131°F)
Storage Temp. -10ºC ~ 75°C (-50 ~ 167°F)
Operating Humidity 10 ~ 95% RH @ 55°C (non-condensing)
Vibration 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD)
Shock Operating 10G, 11ms, Non-operating 30G, 11ms (with CF/SSD)

Expansion

Expansion Bus 1 x Mini-card socket (full-size)(USB only)
1 x PCI 32-bit slot (default) or 1 x PCIe x1 slot
(both Riser Cards are included in Standard Accessories)
Optional 1 x semi-piercing DB9 hole reserved

Qualification

Certification CE, FCC Class A

OS Support

System W7 Pro / WS7E / W8.1 Industry / Win10

Ordering Information

LYNC-817 17” Intel® Celeron® Proccssor J1900 industrial panel PC
Accessori

Optional Accessories

  • PAC-60W6A-FSP-ES
    12V/5A 60W AC/DC power adapter kit

Optional Configuration (CTOS* Kit)

  • 64 / 128 / 256GB SSD
    2.5" SSD MLC 64 / 128 / 256GB
  • WiFi-AT4550
    Atheros, QCNFA324 Wi-Fi module w/ 2 x 30cm internal wiring
  • ANT-D11
    1 x Wi-Fi Dual-band 2.4G / 5G antenna
  • SCK-722C
    Assembly kit for SiP-41B/42B
    (Note: SCK-722C can only be installed with VMB-712 Mounting Bracket)
  • MM-3C-4G
    4GB DDR3-1333 SDRAM
  • ELPP-0101-C224
    PCIe x 1 to mPCIe adapter card (inserted to PCIe x 1 Riser card for optional WiFi module installation)
*CTOS means Configure-to-Order Service.
