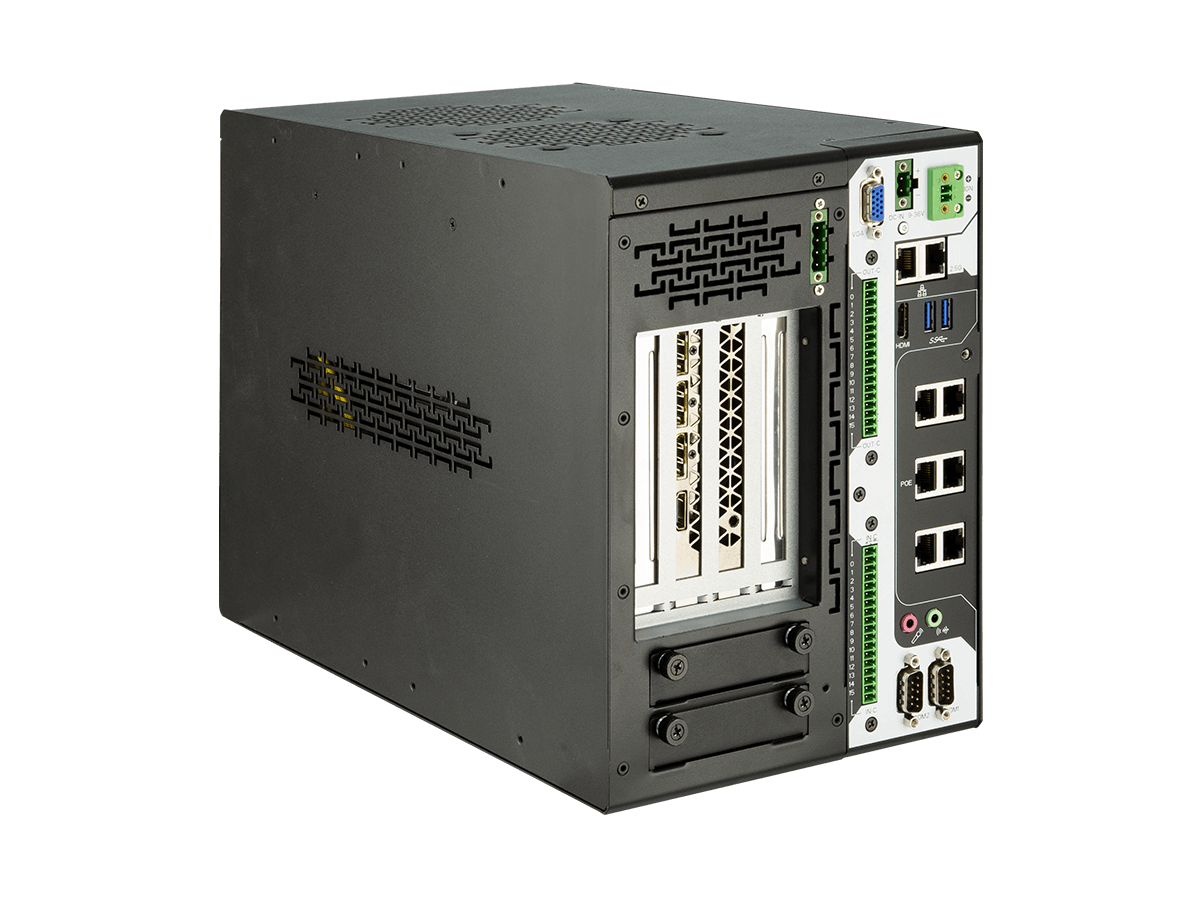

FPC-9107-P6-G2

Ruggedized Edge AI Computing Platform supporting NVIDIA® RTX 3070 GPU Card or Dual NVIDIA® Tesla T4 GPU Cards, Intel®10th Gen Xeon®Core™ Processor with 6 GbE PoE

Caratt. chiave

Compatible with the Intel^® OpenVINO™ toolkit
Intel^® 10th Gen (Comet Lake-S) with W480E chipset
Supports dual NVIDIA Tesla T4 GPU or RTX-30 series up to 250W GPU
Wide range DC power input (12~36V)
HDMI x 1 + VGA x1 (2 independent displays)
Power on/off delay control/ Configurable ignition power control
TPM 2.0 support
2 x outside accessible SATA SSD, supporting RAID 0,1
2 x USB3.2 supports up to 10Gbps data transfer rate
Front-accessible I/O support
PWM FAN control support
6 x 802.3af Gigabit PoE ports
1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE
1 x M.2 (NGFF) E-Key(2230) socket for Wi-Fi / BT

Aggiungi per Confrontare

Specifica

System

CPU	10th generation Intel^® Xeon^® Core™ i9 / i7 / i5 / i3 processor in LGA1200 socket
Memory	2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 (i9/ i7 CPU)/2666( i5/ i3 CPU)/ 2400 MHz (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC)
Chipset	Intel^® W480E
Graphics	Integrated Intel^® HD Graphics
ATA	2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	1 x Intel^® WGI225LM 2.5GbE LAN 1 x Intel^® WGI219LM PCIe controller w/ iAMT 14.0 6 x Intel^® WG1211AT PCIe controllers for PoE
Watchdog Timer	1~255 levels reset

I/O Interface

Serial Port	2 x RS-232 / 422 / 485 configurable (default RS-232)
USB Port	2 x USB 3.2 Gen 2 (10Gbps) / 2.0 ports Internal USB dongle
LAN	2 x RJ-45 ports for GbE / 2.5GbE 6 x RJ-45 ports for PoE (Power budget 60W)
Video Port	1 x HDMI 1 x DB-15 female connector for analog RGB
Expansion Bus	1 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi / BT / 3G / LTE / GPS (PCIe x 1+USB 2.0, full size) 1 x M.2 E key (2230) with PCIe x 1+USB2.0, for Wireless 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x 2 + USB 3.0 + SATA) interconnected with SIM for 5G / LTE expansion or for storage (either one) 2 x PCIe x16 slot (via x 8 lanes) or 1 x PCIe x16 slot (via x 16 lanes) support dual Tesla or 250W GPU card 1 x PCIe x4 slot (power budget 25W)
Digital I/O Port	16 x DI, 16 x DO (1.5KV isolation protection / DO supports 24V 200mA)
Audio	Mic-in / Line-out

Environmental

Operating Temp.	80W TDP CPU : -20 ~ 50°C (-4 ~ 122°F), 65W TDP CPU : -20 ~ 55°C (-4 ~ 131°F), 35W TDP CPU : -20 ~ 70°C (-4 ~ 158°F), w/ NVIDIA^® Tesla T4 : -20 ~ 50°C (-4 ~ 122°F), w/ NVIDIA^® RTX-3070 : -20 ~ 45°C (-4 ~112°F)
Storage Temp.	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	10 ~ 95% @ 50°C (non-condensing)
Vibration	Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD
Shock	Comply with MIL-STD-810G, Method 516.6,Procedure I,Table 516.6-II, 20G

OS Support

System	Windows 10 IOT Enterprise 2019 Linux (Kernel: 4.9)

Storage

Type	2 x 2.5” drive bays (outside accessible) 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x 2 + USB3.0 + SATA ) interconnected with SIM for 5G / LTE expansion or storage (either one)

Qualification

Certification	CE, FCC Class A

Power Requirement

Main Power Input	DC 12~36V input (w/ 2-pin DC input terminal block)
Secondary Power Input	DC 12-36V input (w/ 4-pin DC input terminal block for graphic cards power support)
Ignition Switch	2-pin terminal block: IGN, GND

Mechanical

Construction	Metal
Mounting	Wall-mount
Weight	7.4kg (16.31Ib)
Dimensions (W x D x H)	181 x 320 x 250 mm

Ordering Information

FPC-9107-P6-G2	Ruggedized Edge AI Computing Platform supporting NVIDIA^® RTX-3070 GPU Card or Dual Tesla T4 GPU Cards, Intel^® 10th Gen Xeon^® Core™ Processor with 6 x GbE PoE (Up to 80W TDP CPU)

Accessori

Optional Accessories

PAC-120W6C-FSP
180W AC/DC 24V adapter kit (For System)
PAC-280W6C-MW
280W AC/DC 24V adapter kit (For GPU Box)
PAC-480W6C-MW
480W AC/DC 24V DIN Rail adapter kit (For System + GPU Box)
WMK-7000
Wall-mount kit for FPC-7XXX Series
FAN-9107T4-1
Thermal Kit for 1 x Nvidia^® Tesla T4 GPU card
FAN-9107T4-2
Thermal Kit for 2 x Nvidia^® Tesla T4 GPU cards

Optional Configuration (*CTOS Kit)

MK-4C-4G / 8G / 16G / 32G
DDR4-2400 4GB / 8GB / 16GB / 32GB (DDR4-2933) SDRAM DIMM kit
WiFi-IN2550
Intel AX200NGW M.2 Wi-Fi 6 module w/ 2 x 30cm internal wires
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna
ANT-H11
2dBi HSUPA antenna Kit
Xeon^® W-1250E
Intel^® Xeon^® W-1250E processor, L2/12M, 3.5G
Core™ i9-10900E
Intel^® 10th Gen. Core™ i9-10900E processor, L2/20M, 2.8G
Core™ i9-10900TE
Intel^® 10th Gen. Core™ i9-10900TE processor, L2/20M, 1.8G
Core™ i7-10700E
Intel^® 10th Gen. Core™ i7-10700E processor, L2/16M, 2.9G
Core™ i7-10700TE
Intel^® 10th Gen. Core™ i7-10700TE processor, L2/16M, 2.0G
Core™ i5-10500E
Intel^® 10th Gen. Core™ i5-10500E processor, L2/12M, 3.1G
Core™ i5-10500TE
Intel^® 10th Gen. Core™ i5-10500TE processor, L2/12M, 2.3G
Core™ i3-10100E
Intel^® 10th Gen. Core™ i3-10100E processor, L2/6M, 3.2G
Core™ i3-10100TE
Intel^® 10th Gen. Core™ i3-10100TE processor, L2/6M, 2.3G

*CTOS means Configure-to-Order Service.
