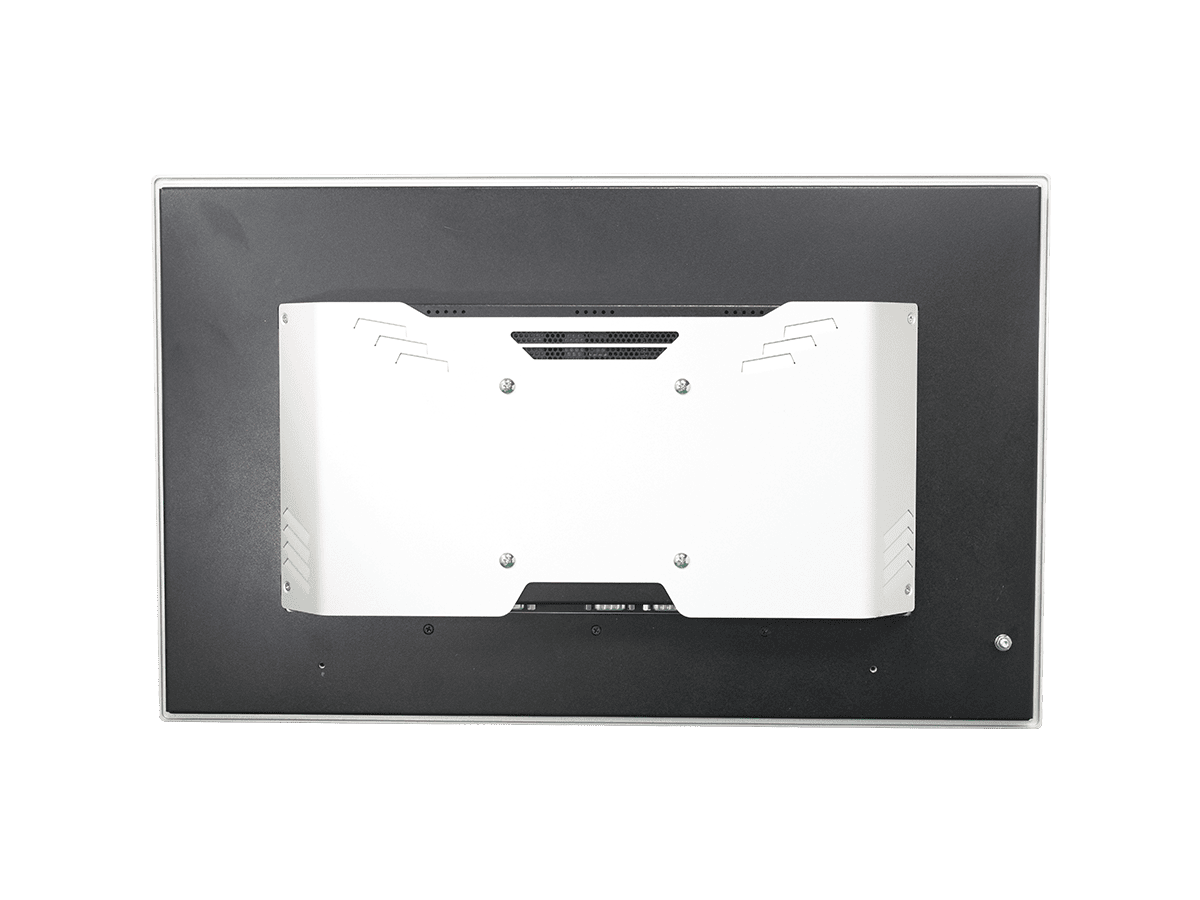

ASLAN-W922C
Fanless 21.5" Wide-Screen Industrial Panel PC with Intel® Core i5-6300U 2.4GHz Processor
ASLAN-W922C
Fanless 21.5" Wide-Screen Industrial Panel PC with Intel® Core i5-6300U 2.4GHz Processor
Features
- 21.5" LCD Display w/ LED backlight
- Flat panel with projected capacitive touchscreen
- Front panel compliant with IP65
- Anti-scratch surface: 7H hardness
- Easy Maintenance Design for HDD/SSD
- Serial Ports (RS-232/422/485), RS-485 w/ Auto-flow Control
- Mini PCIe expansion slot support
- Fanless cooling system
- Cable-less Design
- Low power consumption
- 2 x SMA Antenna Holes for optional Wi-Fi Function
Specifica
System
| CPU | Intel® Core i5-6300U™ Processor 2.4GHz |
|---|---|
| Memory | 1 x 260-pin DDR SO-DIMM socket, supporting 2133MHz SDRAM up to 16GB 4GB DDR4 DDR SO-DIMM pre-installed |
| LAN Chipset | 1 x Intel® i219LM PCIe controller w/ iAMT 1 x Intel® i210IT PCIe controller |
| Watchdog Timer | 1~255 levels reset |
LCD Display
| Size / Type | 21.5" TFT LCD Panel |
|---|---|
| Max. Resolution | 1920 x 1080, FHD |
| Max. Colors | 16.2M |
| Luminance | 250 cd/m² |
| Touch Screen | Projected capacitive touch panel |
| View Angle (U/D/R/L) | 80° / 80° / 85° / 85° |
External I/O
| Serial Ports | 4 x RS-232 / 422 / 485 |
|---|---|
| USB Ports | 4 x Type-A USB 3.0 / 2.0 ports |
| LAN | 2 x RJ-45 GbE ports |
| Video Ports | 1 x VGA / 1 x HDMI |
| Digital I/O | 4IN / 4OUT Digital I/O (optional) |
Storage
| Device | 2 x 2.5” drive bay (default), 1 x mSATA |
|---|
Audio
| Type | Line Out / Mic In (Optional) |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power System
| Power Input | DC 9 ~ 36V |
|---|---|
| Power Consumption | Max. 38.1W (w/o I/O cards) |
Mechanical
| Mounting Type | Panel Mounting and VESA-100 mount (optional) |
|---|---|
| Chassis | Panel-mounting chassis, aluminum front bezel and SGCC steel chassis |
| Weight (Net) | 7.01 kg (15.45 lb) |
| Dimensions (W x H x D) | 536 x 332 x 55.5 mm (21.1” x 13.07” x 2.19”) |
Environmental
| Operating Temp. | -20ºC ~ 55ºC (-4°F ~ 131°F) |
|---|---|
| Storage Temp. | -30ºC ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 1Grms Random (w/ SSD) |
| Shock | Operating 10G, 11ms Non-operating 30G, 11ms (w/ SSD) |
Expansion
| Expansion Bus | 1 x mSATA (SATA, Full Size) 1 x mPCIE (PCIex1+USB2.0, Full Size) 1 x mPCIE (PCIex1+USB2.0, Half Size) |
|---|
OS Support
| System | Windows 7 / Windows 8.1 / Windows 10 / Linux: Ubuntu |
|---|
Ordering Information
| ASLAN-W922C-6300G4 | 21.5” Intel® Core i5-6300U 2.4GHz Processor Wide-screen industrial panel PC with 4GB Memory |
|---|
Accessori
Optional Accessories
-
PAC-60W6A-FSP-ES
12V/5A 60W AC/DC Adapter Kit
Optional Configuration (CTOS* Kit)
-
64 / 128 / 256GB SSD
2.5" SSD MLC 64 / 128 / 256GB -
WiFi-AT4550
Atheros, QCNFA324 Wi-Fi module w/ 2*30cm internal wiring -
ANT-D11
1 x Wi-Fi Dual-band 2.4G / 5G antenna -
ADK-W9X
Audio kit for ASLAN-W900 series -
SCK-722C
Assembly kit for SiP-41B/42B
