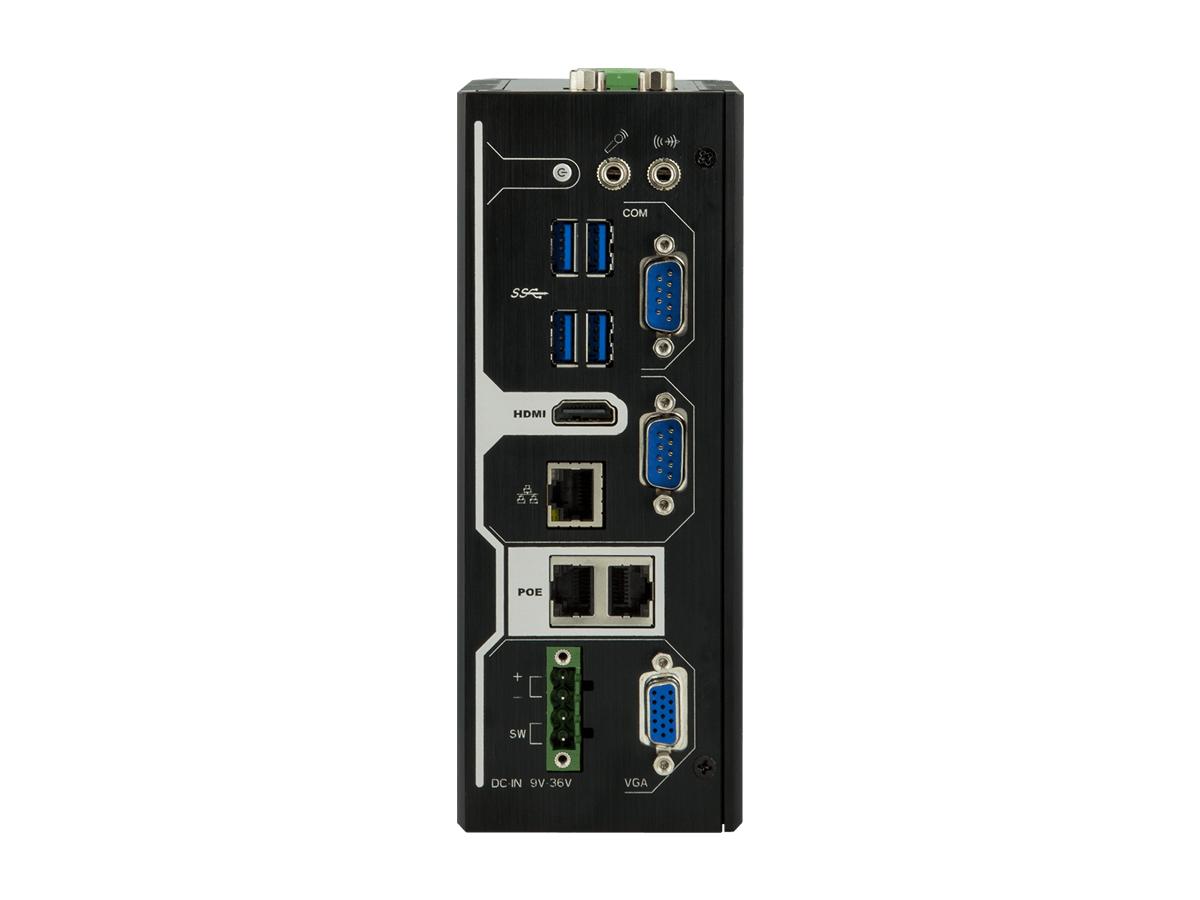

ARES-5310

Fanless DIN-Rail Embedded System with Intel^® Atom^® x7 / Celeron^® Processor

Features

Specifica

CPU	Soldered onboard Intel^® Atom^® x7-E3950 / Celeron^® N3350 Processor, Max.12W TDP
Memory	1 x 204-pin DDR3L SO-DIMM sockets, supporting 1866MHz SDRAM up to 8GB
Chipset	SoC
Graphics	Intel^® HD Graphic 505
LAN Chipset	3 x Intel^® i211AT PCIe controller (Co-Layout i210-IT)
Watchdog Timer	1~255 levels reset

Serial Port	4 x RS232 (Default)/ 422/ 485 (DB-9 male connector) (Switch via BIOS)
USB Port	4 x USB 3.0/ 2.0 (Type A connector)
LAN	3 x RJ-45 ports for GbE LAN (For -E3950A & -N3350A) 2 x RJ-45 ports for PoE IEEE802.3af + 1 x GbE LAN (For -E3950P & -N3350P)
Video Port	1 x HDMI connector (Up to 3840 x 2160@30Hz) 1 x VGA connector (Up to 1920 x 1080@60Hz)
Expansion Bus	1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) 1 x Mini PCIe slot (USB2.0, Full size)
Digital I/O	4 x DI, 4 x DO (For -E3950A/S & -N3350A) 16 x DI, 16 x DO w/ 2kV isolation (For -E3950P & -N3350P)
SIM	1 x internal on-board nano SIM slot

Operating Temp.	-40 ~ 70°C (-40 ~ 158°F), ambient w/ air flow
Storage Temp.	-40 ~ 80°C (-40 ~ 176°F)
Operating Humidity	10 ~ 95% @ 70°C (non-condensing)
Vibration	5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64
Shock & Crash	10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27

Certification	CE, FCC Class A

System	Windows 10 IoT, Linux: Ubuntu (Kernel: 3.1X)

Type	64GB eMMC on-board, 1 x 2.5” HDD/SSD tray (For -E3950A & -N3350A) 1 x M.2 M-Key, 2242, SATA3.0 (For -E3950P & -N3350P)

Power Input	DC 9 ~ 36V (4-pin DC in terminal block: V+, V-, SW-, SW+)
Ignition Switch	2-Pin terminal block: IGN & GND
Power Consumption	Max. 65W

ARES-5310-E3950A	ARES-5310 w/ E3950, 1 x HDMI, 1 x VGA, 4 x COM, 4 x DI/DO, 3 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x 2.5” HDD/SSD tray
ARES-5310-E3950P	ARES-5310 w/ E3950, 1 x HDMI, 1 x VGA, 4 x COM, 16 x DI/DO, 2 x PoE, 1 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x M.2 M Key storage
ARES-5310-E3950S	ARES-5310 w/ E3950, 1 x HDMI, 1 x VGA, 4 x COM, 4 x DI/DO, 2 x PoE, 1 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x M.2 M Key storage
ARES-5310-N3350A (BTO)	ARES-5310 w/ N3350, 1 x HDMI, 1 x VGA, 4 x COM, 4 x DI/DO, 3 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x 2.5” HDD/SSD tray
ARES-5310-N3350P (BTO)	ARES-5310 w/ N3350, 1 x HDMI, 1 x VGA, 4 x COM, 16 x DI/DO, 2 x PoE, 1 x GbE LAN, 4 x USB3.0, 1 x 64GB eMMC, and 1 x M.2 M Key storage

Accessori

PAC-120W6B-FSPS
19V/6.3A, 120W AC/DC adapter kit (For -E3950P & -N3350P)
PAC-P060W-02
12V/5A, 60W AC/DC adapter kit (For -E3950A & -N3350A)
WIFI-AT4550
Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna
ANT-H11
2dBi HSUPA Antenna Kit
LTE-1450
LTE Quectel EC25-E Cat 4 Mini-PCIe Wireless Kit(excluded North of America/Euro)
MK-3CL-2G/4G/8G DIMM Memory
2G/4G/8G DDR3L Memory with heat sink kit
WMK-1973
Wall-mount kit for ARES-1973/5310

Scarica

Descrizione	Misura	Tipo	Versione	Data	Scarica
Descrizione ARES-5310 Datasheet	Misura 794 KB	Tipo pdf	Versione	Data 2022-01-05	Scarica Scarica
Descrizione ARES-5310_UM_V1.1_4017531000100P_20210315	Misura 7 MB	Tipo pdf	Versione V1.1	Data 2022-03-07	Scarica Scarica
