TIM-048
Smart Thermal Monitoring System Solution

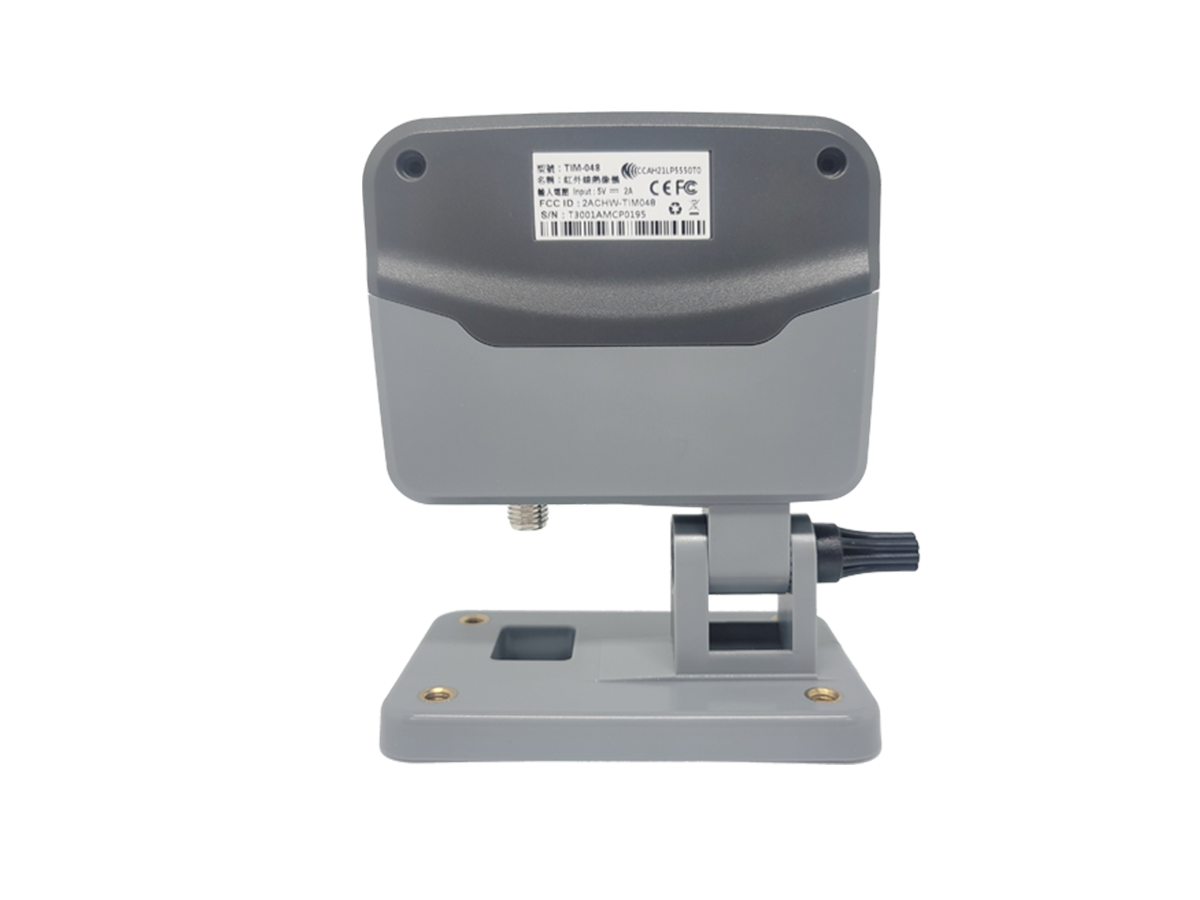

TIM-048
Smart Thermal Monitoring System Solution
Features
- Turnkey solution for temperature monitoring and measurement
- Long range infrared radiation of 8μm to 14 μm
- Intuitive user interface with touchscreen and physical buttons
- Easy to use monitoring & setup utility
- Compact size for easy installation
- Ideal for condition monitoring and process monitoring
Specification

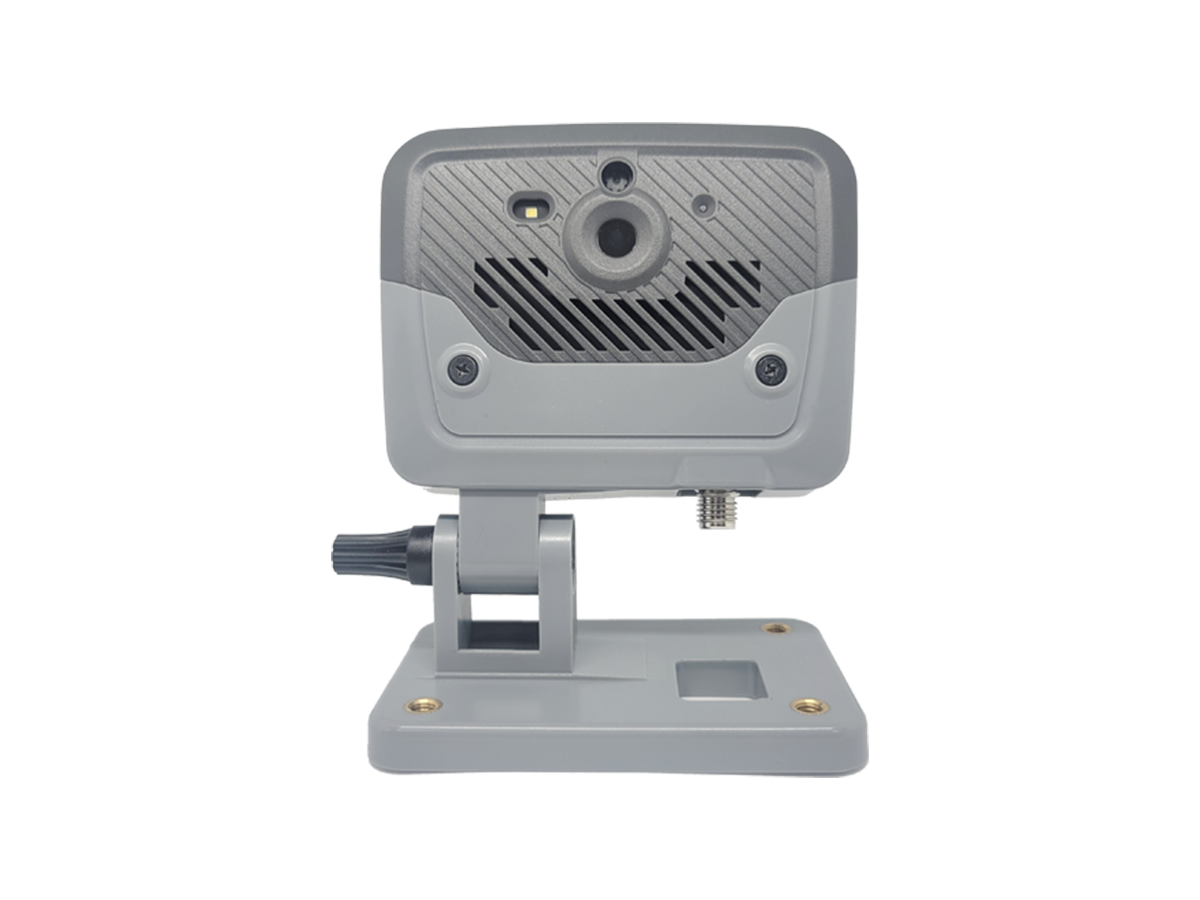

Lonewave Infrared Camera
Wireless
| Wi-Fi | IEEE 802.11 a/b/g/n |
|---|---|
| Antenna | Built-in dual band (2.4G / 5G) chip antenna |
Camera
| Camera | 5 Mega pixel FF |
|---|---|
| Flashlight | LED flashlight |
Power
| Power Input | 5V / 2A |
|---|
Sensor
| Array Format | 80x60 |
|---|---|
| Pixel | 17μm |
| Effective Frame Rate | 8.6Hz |
| Scene Dynamic Range | 0°C ~ 120°C |
| Radiometric Accuracy | ±5°C |
| Field of View | 51° (H), 63.5° (D) |
I/O Interface & Button
| I/O Interface & Button | micro USB connector for debug (internal) |
|---|---|
| Power Jack | 1 x 3-pin M8 power jack (IP67) |
| LED | 3-color LED; Pair, Link, Activity |
Mechanical
| Net Weight | 150g |
|---|---|
| Dimensions (H x W x D) | 89.9 x 64.24 x 27.27 mm 105.9 x 99.3 x 44.2 mm w/ stand |
Control HMI
System
| CPU | ARM Quad-core Cortex-A35 |
|---|---|
| OS | Android 8.1, (BTO service for Buildroot) |
| Memory | 2GB DDR4 memory soldered on board |
| Flash | 16GB eMMC flash soldered on board |
Peripherals and Devices
| Front Camera | 1 x 8MP resolution CMOS MIPI-CSI Type AF camera module |
|---|---|
| Audio | 1 x built-in speaker (1W) 1 x built-in microphone |
Wireless
| WWAN | WCDMA / LTE, Mini PCIE interface (optional) |
|---|---|
| WLAN | IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 4.2, low power BLE |
| NFC | 1 x 13.56MHz RFID & NFC reader with ISO 14443A / 14443B / 15693 & mifare |
| GPS | Supporting GPS / Galileo / Glonass / BeiDou / QZSS (optional) |
I/O Interface
| SD Card | 1 x microSDHC / microSDXC / microSD (Max. 128GB) card socket |
|---|---|
| USB | 2 x USB 2.0 Type-A port; 1 x micro USB 2.0 |
| Speaker | 1 x 8Ω / 1W |
| DB9 Interface | 1 x RS-232 / 422 / 485 COM port; 1 x RS-232 COM port |
| LAN | 1 x RJ-45 Ethernet, 10/100Mbps |
| CAN | OBD-II |
| Digital I/O | 3 x DI, 3x DO (dry contract) |
| Expansion | Mini PCIE interface (USB signal only) |
LCD Display
| Size / Type | 8” TFT LCD |
|---|---|
| Resolution | 1024 x 600 |
| Brightness | 500 cd/m² |
Mechanical & Environmental
| Operating Temp. | -20°C ~ 70°C (-4°F~158°F) |
|---|---|
| Storage Temp. | -20°C ~ 70°C (-4°F~158°F) |
| Operating Humidity | 5~90% RH@ 50°C (non-condensing) |
| Dimensions (W x H x D) | 218.16 x 162.67 x 46.5mm |
| Weight | 940g (2.07lb) |
Power
| Power Input | Built-in ignition detection |
|---|---|
| DC Input | 3-pin terminal block; 9V~36V auto-detection |
