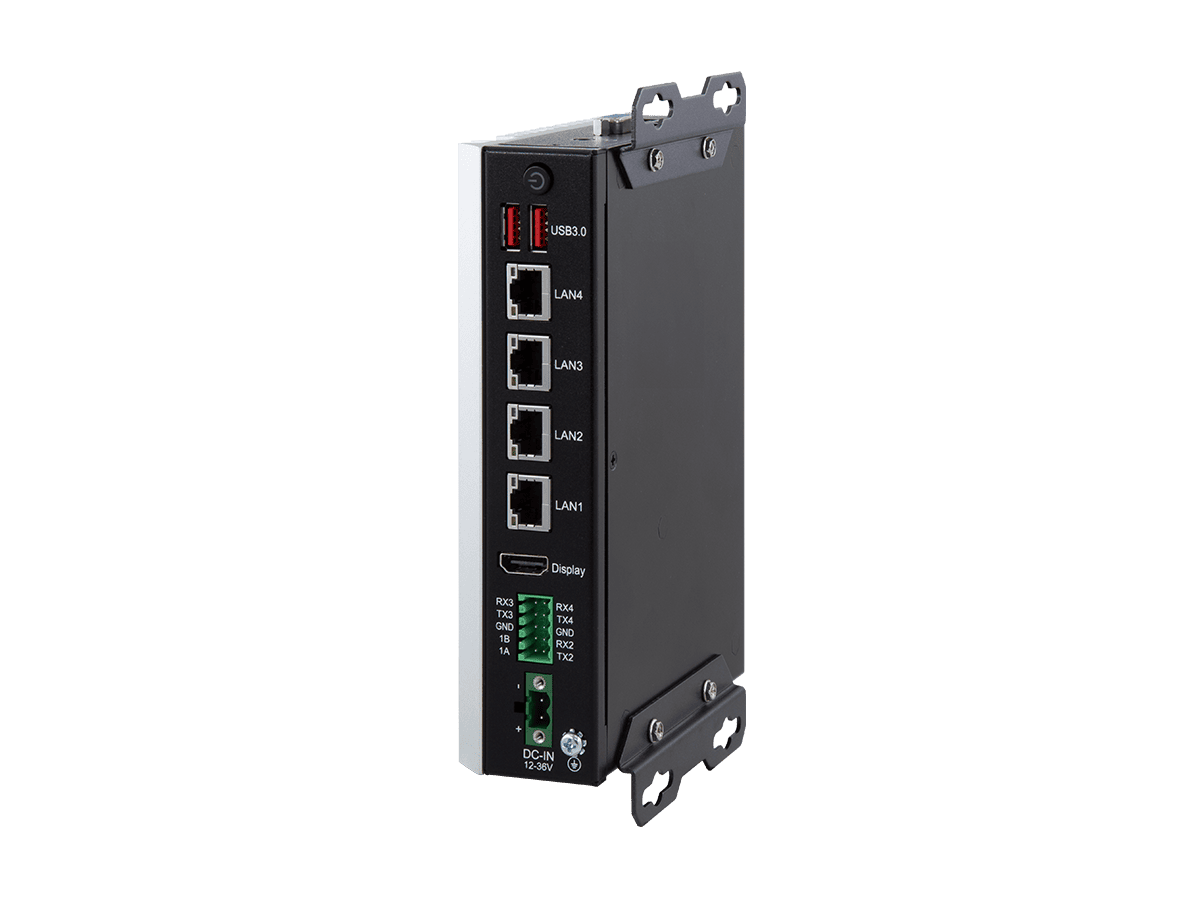

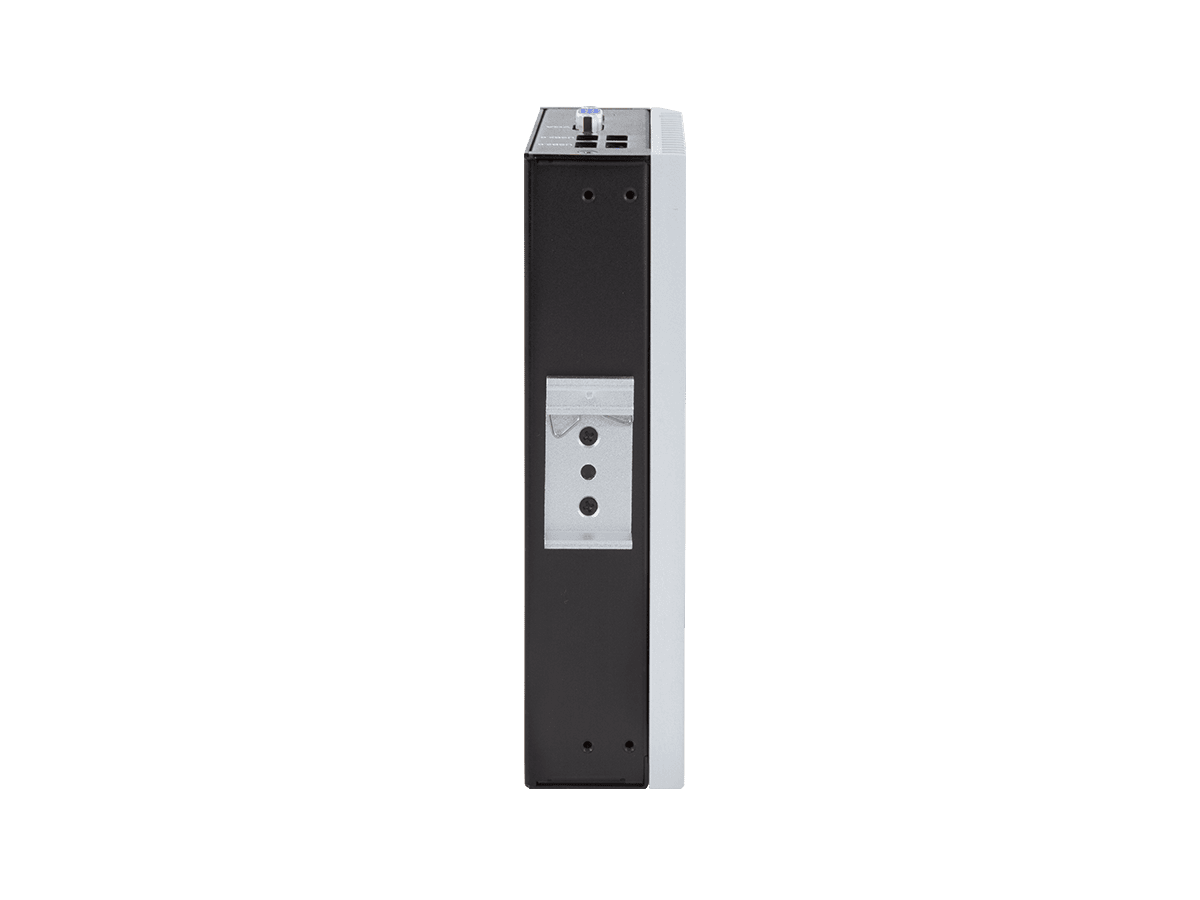

SB-244-2J64
Industrial Fanless PC w/ Intel® Elkhart Lake Celeron® J6412 Processor & Discrete TPM
SB-244-2J64
Industrial Fanless PC w/ Intel® Elkhart Lake Celeron® J6412 Processor & Discrete TPM
Features
- Intel® J6412 CPU Elkhart Lake(2.0 GHz/2.6GHz)
- 1 x SDRAM DDR4 3200 MHz (max. 32G)
- Support 4 Gigabit LAN
- Support HDMI/VGA video output
- Support mSATA/M.2 SSD, M.2 WiFi, Mini-PCIe
- Support Discrete TPM 2.0 module pre-installed
Specification
System
| CPU | Intel® Celeron® J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz) |
|---|---|
| Memory | 1 x SDRAM DDR4 3200 MHz SO-DIMM slot (max. 32G) 4GB DDR4 SO-DIMM pre-installed*(CTOS) |
| Graphics | Intel® UHD Graphics for 10th Gen. Intel® Processors |
| LAN Chipset | 2 x Intel I210AT GbE controllers 2 x Realtek RTL8111H GbE controllers |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
Storage
| Device | 1 x mSATA 1 x M.2 2242 (SATA3.0) 128GB M.2 SSD pre-installed*(CTOS) |
|---|
Audio
| Type | 1 x Audio(Line-out & Mic-in) Chip 888S/897 |
|---|
Power System
| Power Input | 12-36V DC, 2-pin phoenix connector |
|---|
OS
| System | Windows 10, Ubuntu 20.04 |
|---|
Qualification
| Certification | CE, FCC |
|---|
External I/O
| Serial Ports | 2 x RS232/RS422/RS485 (default RS-232) with auto flow control 2 x RS485 2 x RS232 (optional by internal pin head) |
|---|---|
| USB Ports | 2 x USB3.1 4 x USB2.0 1 x USB2.0 (for security dongle) |
| LAN | 4 x RJ45 |
| Video Ports | 1 x HDMI up to 4096 x 2160 @ 24 Hz 1 x VGA (Side Located) |
| GPIO Remote | 1 x 8bit programmable GPIO (default 3.3V, 5V optional) (optional by internal pin head) |
| Remote | 1 x SW |
| Indicators | 1 x Power LED(Green for Power-on, Blink for Sleep mode, Off for Power-off) |
Internal I/O
| Expansion Slot | 1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) interconnected with SIM socket 1 x E-Key M.2 2230 slot (PCIe/USB2.0 signal supported) 1 x M.2 2242 SSD slot(SATA signal supported) |
|---|---|
| SPI | 12-pins header w/ 5V for TPM 2.0 module |
| SIM Card | 1 x SIM Card socket for 3G/4G module |
Mechanical
| Button | 1 x Power button |
|---|---|
| Chassis | Aluminum Alloy |
| Dimensions (W x H x D) | 180 x 125 x 45 mm |
| Weight (Net) | 1.5kg |
Environmental
| Operating Temp. | -20 ~ 60°C |
|---|---|
| Storage Temp. | -40 ~ 85°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Random Vibration | 5~500Hz, 2Grms, operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| ESD | Contact 6KV, Air 10KV |
Ordering Information
| SB-244-2J64-R4S128 | Fanless System with 4GB RAM & 128GB SSD, Intel Celeron Elkhart Lake J6412, DC 12-36V power input, Discrete TPM 2.0 module pre-installed |
|---|---|
| SB-244-2J64 | Barebone Fanless System, with Intel Celeron Elkhart Lake J6412, Discrete TPM 2.0 module pre-installed |
| PAC-60W-FSP-SPA R1.0 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ USA POWER CORD |
| PAC-60W-FSP-SPA R1.1 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA R1.2 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA R1.3 | AC/DC ADAPTER KIT (W/UKCA),12V,60W,2 WIRE w/ IN POWER CORD |
