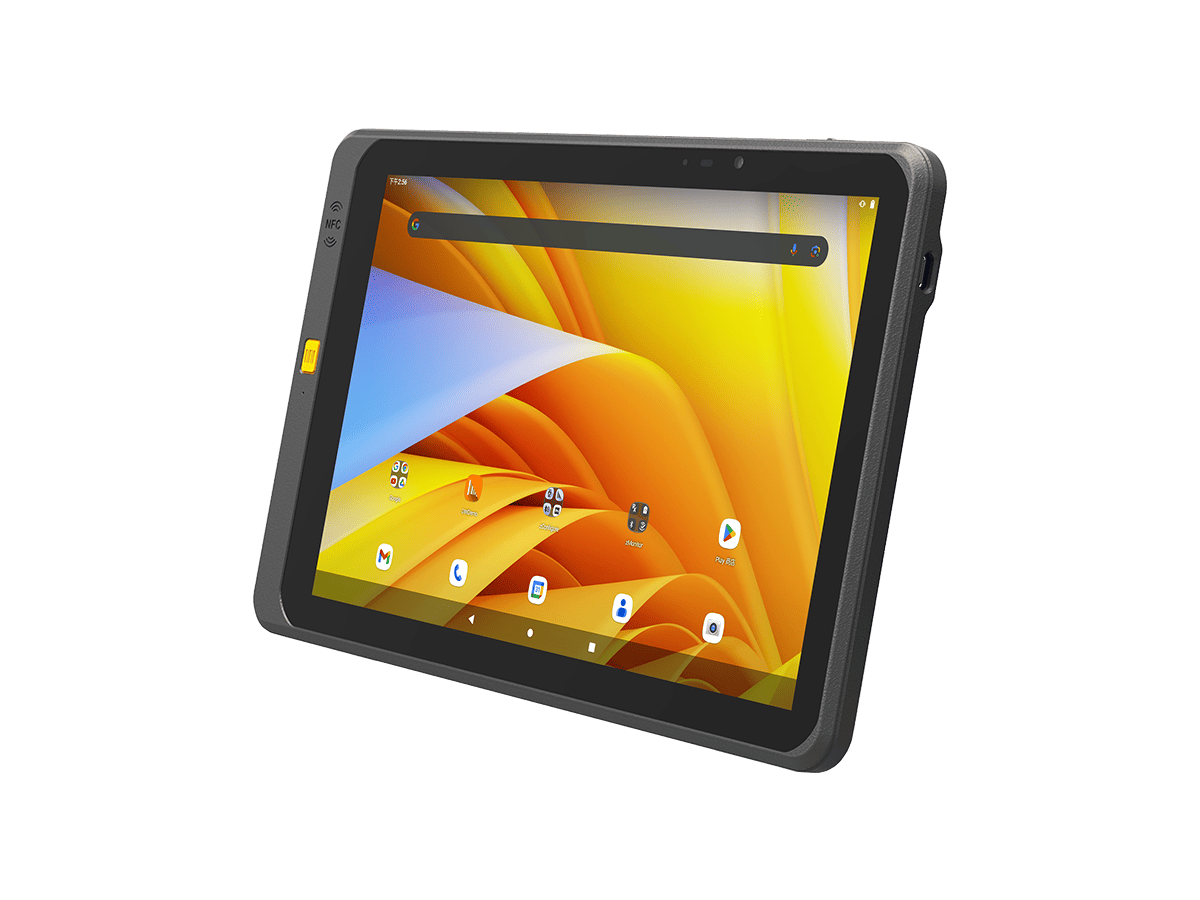

Ruby 10
Ruby 10
- MediaTek MT8781 (2x Cortex A76 2.2GHz / 6x Cortex A55 2.0GHz)
- Support Android™ 14 (2025), 15 (2026)
- IP65 waterproof and dustproof, 1.2m (4ft.) drop resistance
- Embedded 1D/2D barcode imager and 8M front camera and 13M rear camera
- High mobility with multiple-connectivity including WLAN, BT and WWAN
- Hot-swappable battery system
Ruby 10: Secure and Flexible Payment Solution
The Ruby 10 is EMV Level 1 and PCI certified, ensuring secure transactions and compliance with global standards. Its "Tap on Front" design places the NFC reader directly on the screen, enabling intuitive and seamless transactions for both merchants and customers. Supporting EMV chip cards and mobile payments, it can easily be upgraded to Soft POS, reducing hardware dependency and adapting to various payment methods. With its durable build and financial-grade encryption, the Ruby 10 is perfect for mobile POS, logistics payments, and self-service checkouts, driving operational efficiency and enhancing the customer experience.
Enhancing Efficiency with Integrated Barcode Scanning
The Ruby 10 seamlessly integrates barcode scanning into the tablet, eliminating the need for an additional barcode scanner and streamlining inventory and mobile operations. Equipped with a high-performance scanner, it swiftly reads 1D/2D barcodes—even in low-light or damaged conditions—ensuring accuracy and reliability. This powerful feature accelerates workflows, boosts operational efficiency, and provides a stable, high-performance experience, even in demanding environments.
System
| CPU | MediaTek MT8781 Octa-core (2x Cortex A76 2.2GHz / 6x Cortex A55 2.0GHz) |
|---|---|
| OS | Android 14 (2025), Android 15 (2026) |
| Memory | LPDDR 4X 4GB / 8GB (Optional) |
| Flash | UFS 2.2 64GB / 128GB (Optional) |
| GMS | Android 15 (2026) Support |
LCD Display
| Size / Type | 10.1” IPS TFT LCD |
|---|---|
| Resolution | 800 x 1280 (WXGA) |
| Brightness(cd/m²) | 520 cd/m² |
I/O Interface
| SD Slot | 1 x microSD card slot (max 512GB) |
|---|---|
| SIM Socket | Mode 1: 2 x Nano SIM Mode 2: 1 x Nano SIM, 1 x micro SD |
| USB Port | 1 x USB Type-C |
Peripherals and Devices
| Camera | Front: 8M Rear: 13M AF / 21M(Optional) with Flashlight |
|---|---|
| Sensor | Accelerometer (G-sensor), Digital Compass, Gyroscope, Ambient light sensor |
| Navigation | AGPS,GPS/Glonass/Beidou/Galileo |
| Barcode Scanner | Zebra SE4710 / SE55 (Optional) |
| Audio & Vibrator | 2 x built-in microphone 1 x built-in speaker (2W) 1 x vibrator |
| OTG | Support |
Wireless
| WiFi | WiFi 5 / 6E (Optional) |
|---|---|
| Bluetooth | BT 5.0 / BT 5.4 (Optional) |
| WWAN | 2G: 850/900/1800/1900 MHz 3G: Bands 1/2/4/5/6/8/9/11/18/19/25/34/39 4G: Bands 1/2/3/4/5/7/8/9/11/12/13/14/17/18/19/20/21/25/ 26/27/28/29/30/32/33/34/38/39/40/41/42/48/65/ 66/67/69/71 |
| NFC | Support (ISO/IEC14443A/B; ISO/IEC15693; Tags T1/2/3/4/5; etc.) |
Power Supply
| Charging | USB Type-C, Pogo pin (Fast Charging) |
|---|---|
| Power Input | 5V/3A or 9V/2A auto detected (USB PD2.0 support) |
| Battery Capacity | 1 x Hot swappable 3.85V 6600mAh 1 x 180mAh internal battery pack |
Qualification
| Certification | CE, FCC, NCC, and Others by request |
|---|
Durability Features
| IP65 Certified 1.2m (4ft.) drop-resistance |
Key
| Physical Buttons | Volume, Barcode Trigger, Power Button |
|---|
Mechanical & Environmental
| Operating Temp. | -10ºC ~ 50ºC (-14ºF ~ 122ºF) |
|---|---|
| Storage Temp. | -30ºC ~ 70ºC (-22ºF ~ 158ºF) |
| ESD | ±15kV air ±8kV contact |
| Relative Humidity | 10% ~ 90%RH |
| Dimensions (W x H x D) | 268.2(W) x 171.9(H) x 12.3(D) mm |
| Weight | 700g (1.54lb) |
Multi-Function Extension
| Desktop Dock |
Standard Accessories
-
Battery
1 x Li-ion Battery, 3.85V 6600mAh -
Adapter
1 x 18W AC/DC Adapter, support PD2.0 -
Cable
1 x USB-A to USB-C Cable, L=1m
Optional Accessories
-
RT101 Cradle H
Desktop Charging Cradle with LAN, USB Type-A, USB Type-B, Serial Port, and DC Jack -
RT101 Cradle S
Desktop Charging Cradle with USB Type-C for charging -
Hand Strap
Hand Strap
