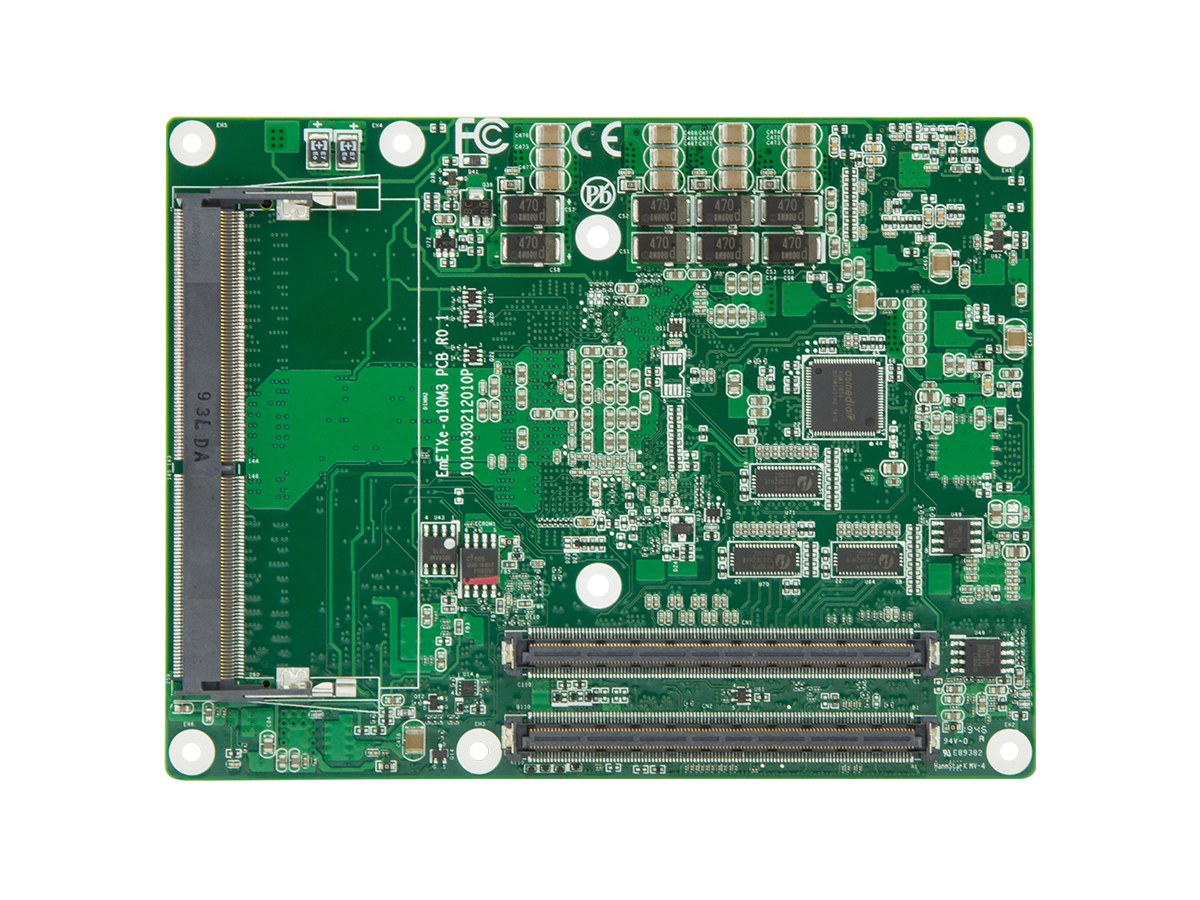

EmETXe-a10M3
AMD Ryzen Embedded V1000 V1605B/V1756B/V1807B COM Express® Basic Type 6 CPU Module
EmETXe-a10M3
AMD Ryzen Embedded V1000 V1605B/V1756B/V1807B COM Express® Basic Type 6 CPU Module
Features
- Soldered onboard AMD V1605B/V1756B/V1807B APU Processor
- Integrated Gigabit Ethernet
- Dual Channels 24-bit LVDS or 1 x DP port, Max. 3 x DDI ports
- Support 3 independent displays
Specification
System
| CPU | Soldered onboard AMD Ryzen V1000 V1605B 2.0GHz(Base)/ 3.6GHz (Turbo) or V1756B 3.25GHz(Base)/ 3.6GHz (Turbo) or V1807B 3.35GHz(Base)/ 3.8GHz (Turbo) processor |
|---|---|
| Memory | 2 x DDR4 ECC SO-DIMM sockets, supporting up to 32GB SDRAM |
| BIOS | AMI UEFI BIOS |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 12 x USB ports: - 8 x USB 2.0 ports - 4 x USB 3.1 ports |
|---|---|
| Serial Port | 2 x UART ports (RX/ TX only) |
| Expansion Bus | 8 x PCIe x1 lanes, 1 x GPCIe x8 lanes, LPC, SPI |
| DIO | 8-bit Digital Input/ Output |
| Storage | 4 x Serial ATA ports with 600MB/s HDD transfer rate |
| Ethernet Chipset | 1 x Intel®Ethernet controller i21x series |
| Audio | HD audio link |
| TPM | Supports TPM 2.0 SLB9665TT (Optional) |
Display
| Graphics Chipset | Integrated Vega Core Graphics controller |
|---|---|
| Graphics Interface | Dual Channels 24-bit LVDS, with resolution up to 1920 x 1200 @60Hz or 1 x DP Max. 3 x DDI ports |
OS support
| Windows 10 IoT Enterprise 64-bit Linux: Ubuntu |
Mechanical & Environmental
| Power Requirement | 8.5V~28V wide range voltage input, +5VSB |
|---|---|
| Power Consumption | 2.39A @ 12V(V1605B typical) |
| Operating Temp. | -20 ~ 70ºC |
| Operating Humidity | 10 ~ 95% @ 70ºC (non-condensing) |
| Dimension (L x W) | 125 x 95 mm (4.9” x 3.7”) |
Ordering Information
| EmETXe-a10M3-V1605B | AMD Ryzen Embedded V1000 V1605B COM Express® Basic Type 6 CPU Module |
|---|---|
| EmETXe-a10M3-V1756B | AMD Ryzen Embedded V1000 V1756B COM Express® Basic Type 6 CPU Module |
| EmETXe-a10M3-V1807B | AMD Ryzen Embedded V1000 V1807B COM Express® Basic Type 6 CPU Module |
Accessories
Optional Accessories
| HS-10M3-C1 | Heat sink with Fan, PAD (95 x 125 x 51mm) |
|---|---|
| PBE-1705-F1 | COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor |
| CBK-03-1705-00 | Cable kit 1 x SATA cabl, 2 x COM Flat cables |
